Description:

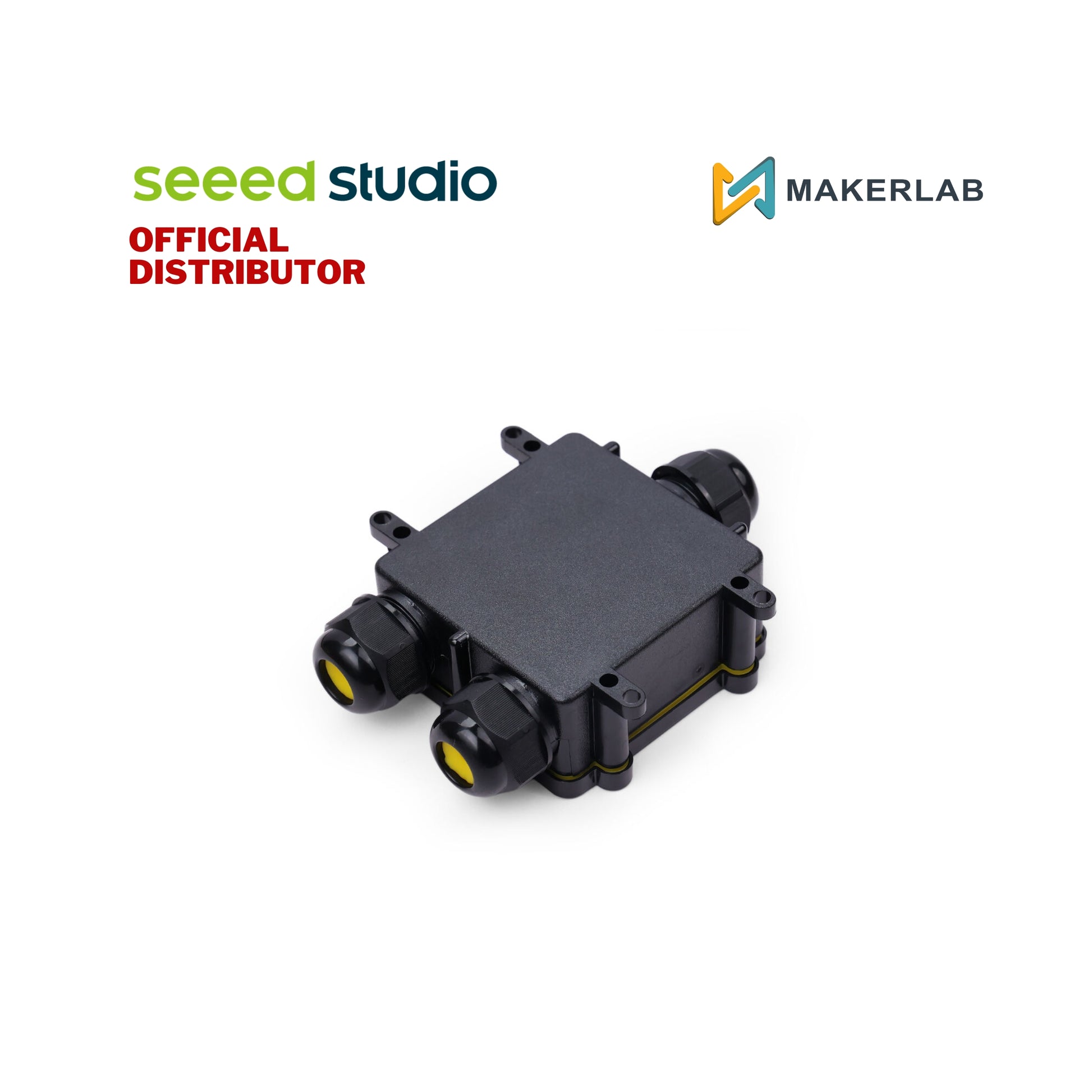

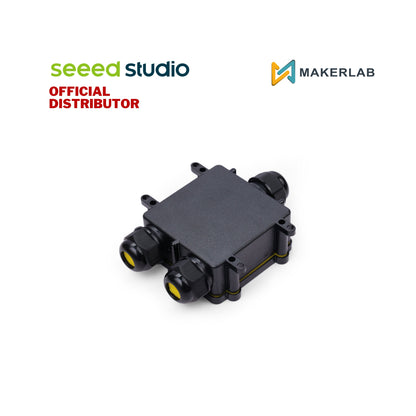

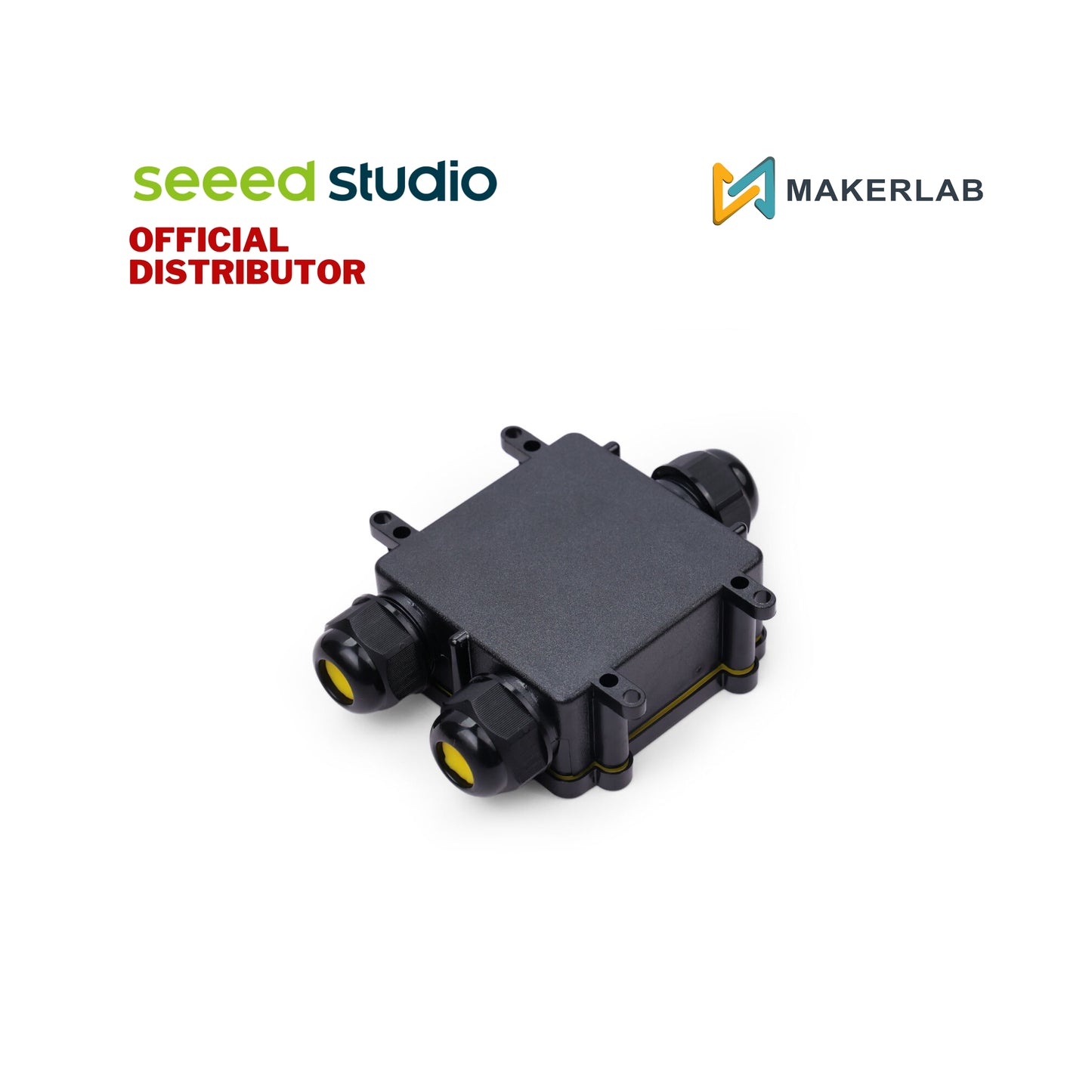

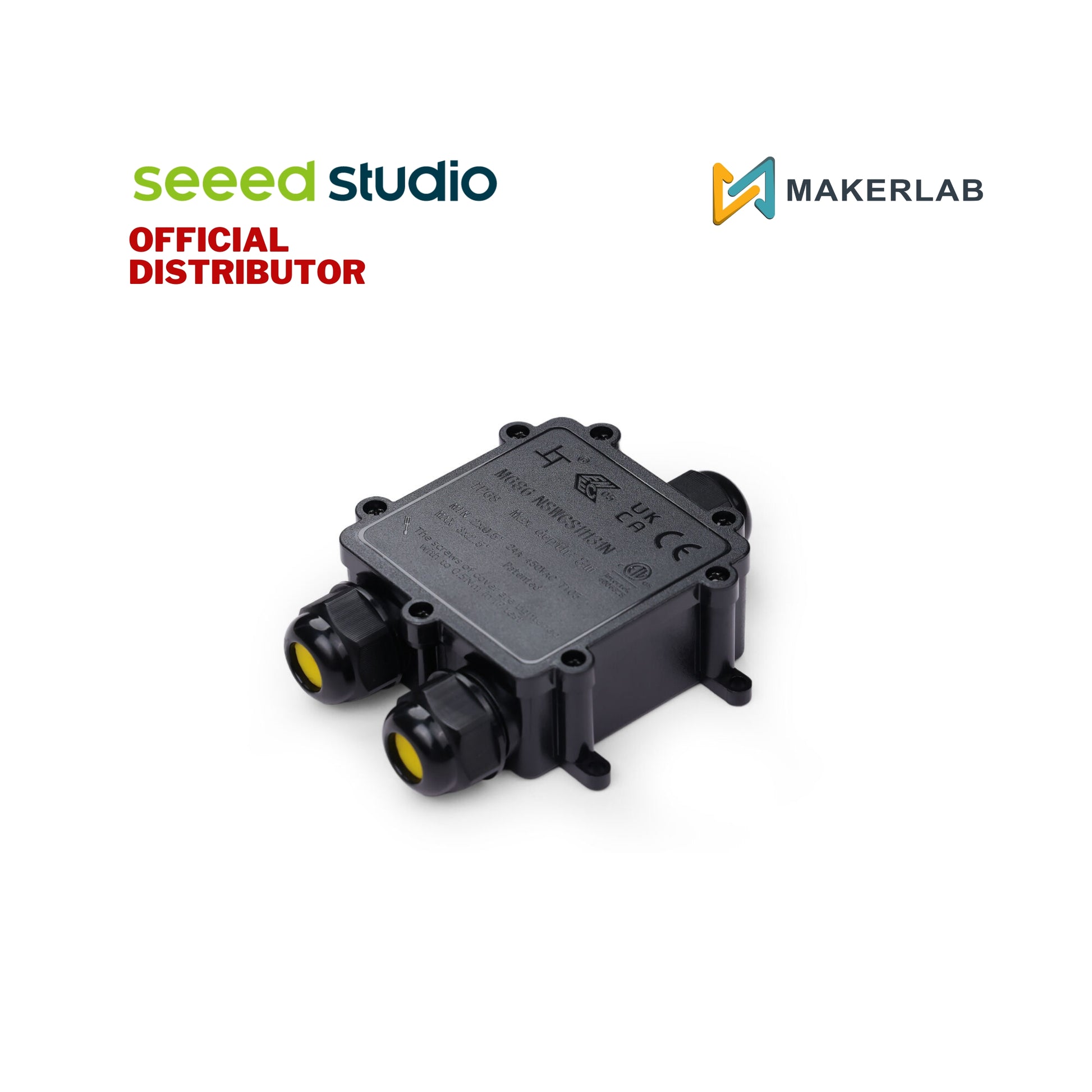

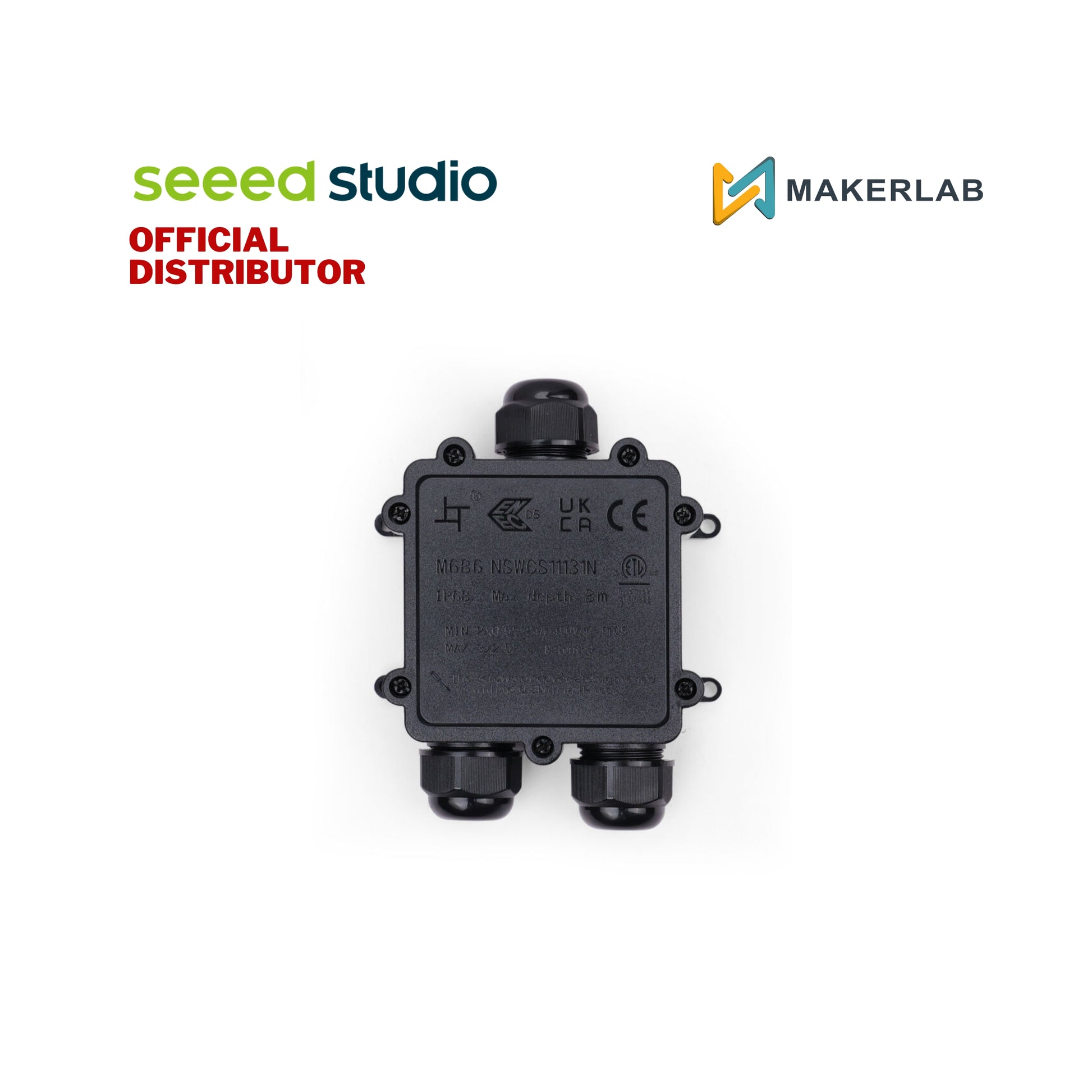

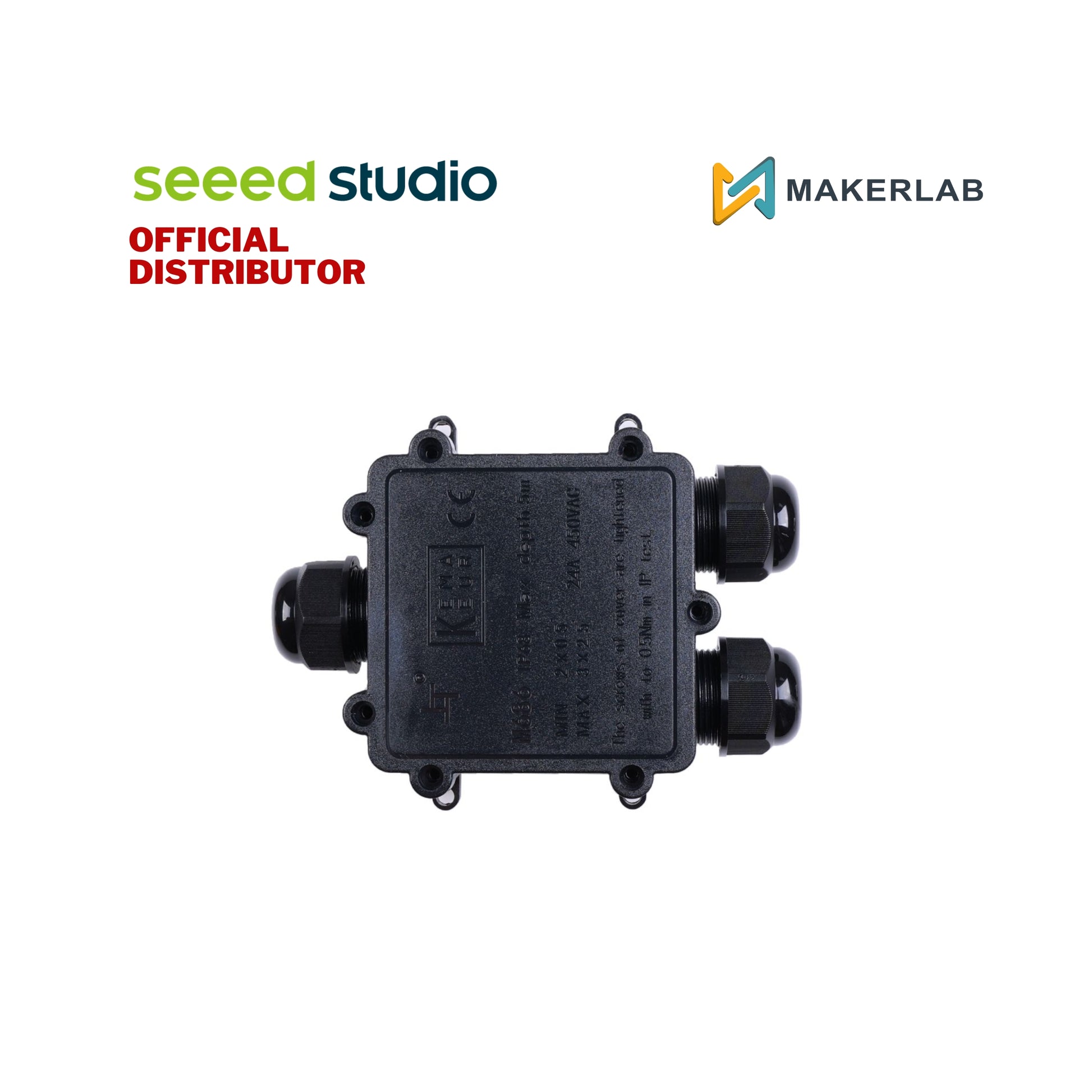

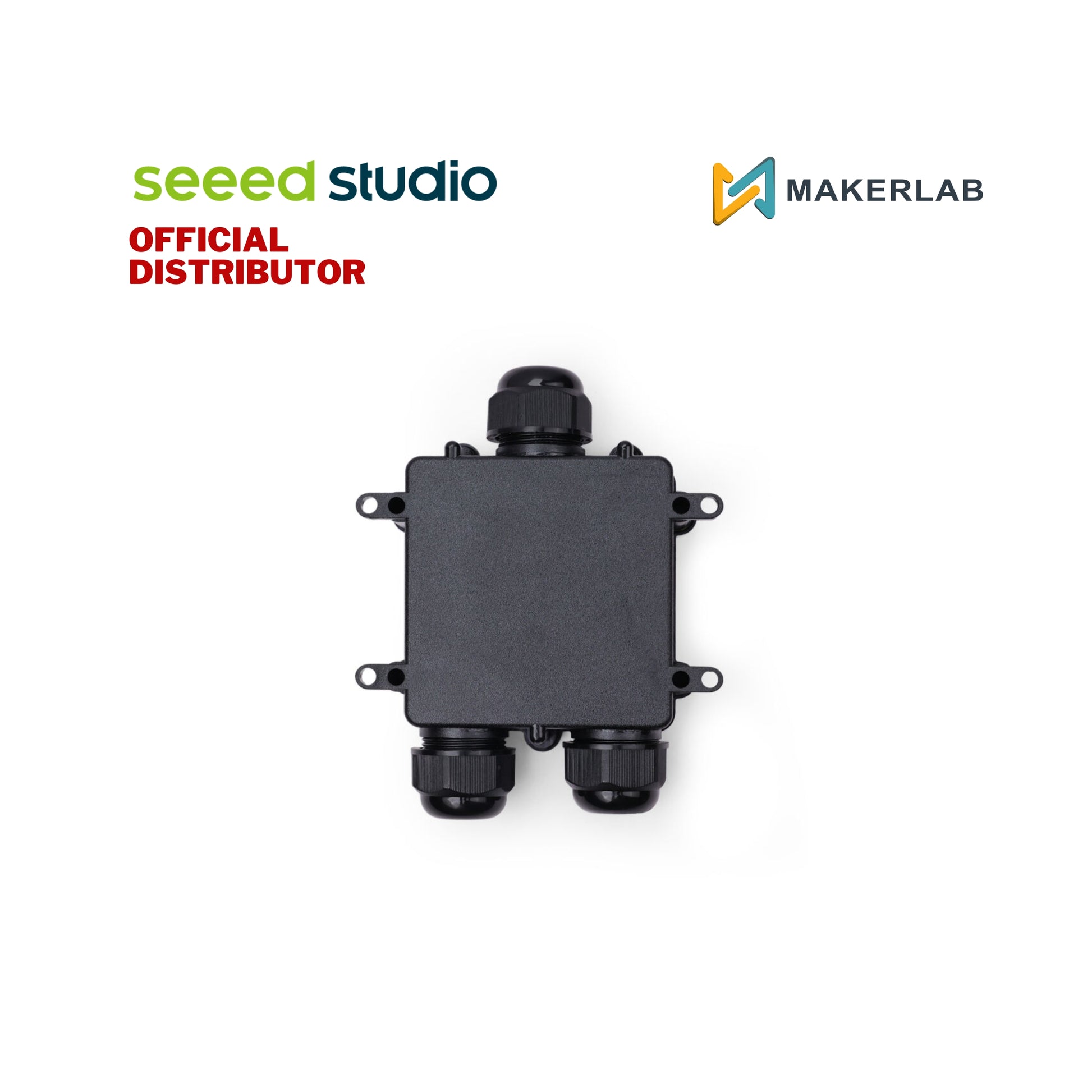

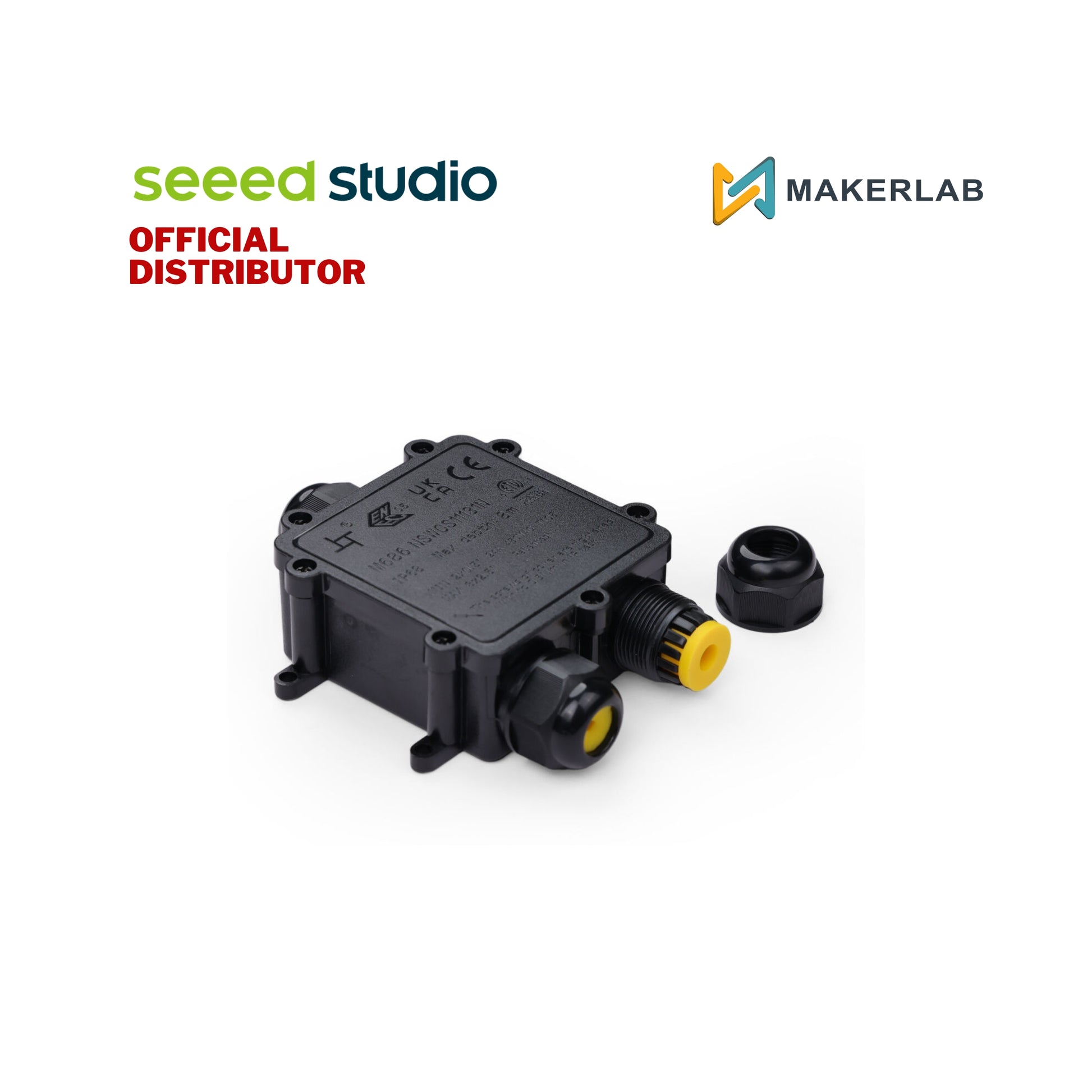

The Waterproof Junction Box Kit provides a secure, IP68-rated environment for connecting sensors and external 12V DC power supplies to data loggers. It eliminates the need for soldering or wire-cutting in the field, using high-quality brass terminals for a "plug-and-play" experience.
While optimized for the SenseCAP S2100 series, it is a versatile universal connecting box. It ensures that internal wiring remains protected from high-pressure water jets and prolonged immersion, which is critical for environmental monitoring in agricultural or industrial sites.
With an IP68 waterproof rating, the junction box can be used to connect S2100 Data Logger with an external 12V power supply. No additional tools, no welding, or cutting of cables is required, which makes connection easier and safer.
Features:
-
Industrial Standard: IP68 high waterproof level
-
Premium Material: premium plastic enclosure
-
Easy to Install: kit includes a screwdriver, waterproof tape and screws, etc. for quick installation and can be installed horizontally or vertically as an external junction box
Steps to Connect Data Logger with Junction Box
-
Wire to the terminal of the Data Logger.
-
Wire to the terminal of the junction box.
-
Connect the sensor wire to the junction box.
-
Connect the 12V DC adapter to the power supply.
Specifications:
Model: Junction-Box-Kit
Material:
Housing: PC
Conductor: Brass
IP Code: IP68
Working Temperature: T105
Rated Connecting Capacity: 0.5 ~2.5mm²
Available cable diameter (Rubber Cable): 4-8mm
Waterproof Test: 10M 150hours
Product Size: 130.14mm*80.5mm*35.3mm (Refer to actual drawing）
Certification: KEMA,ENEC,CE,UKCA,CB,SAA,ROHS

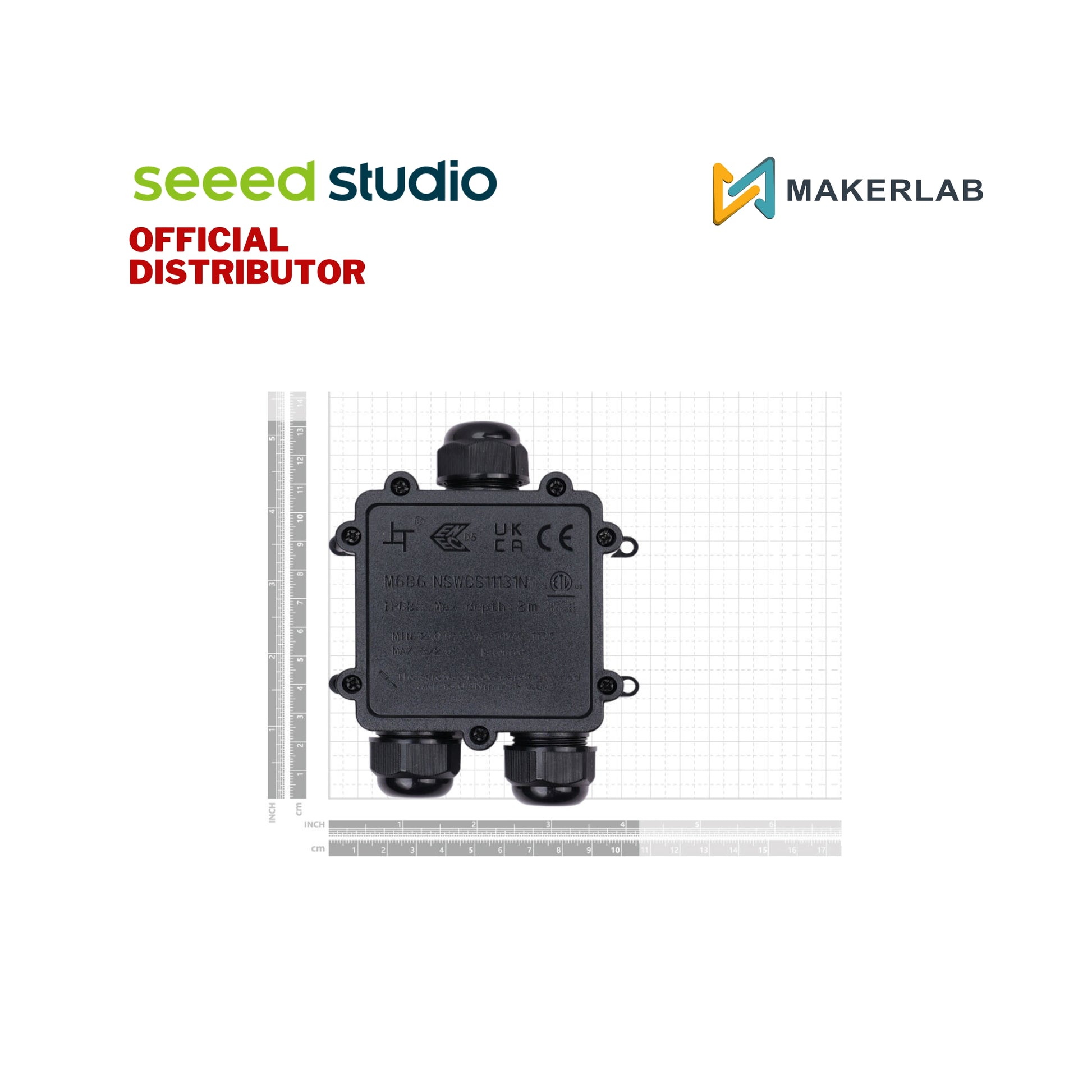

Dimension:

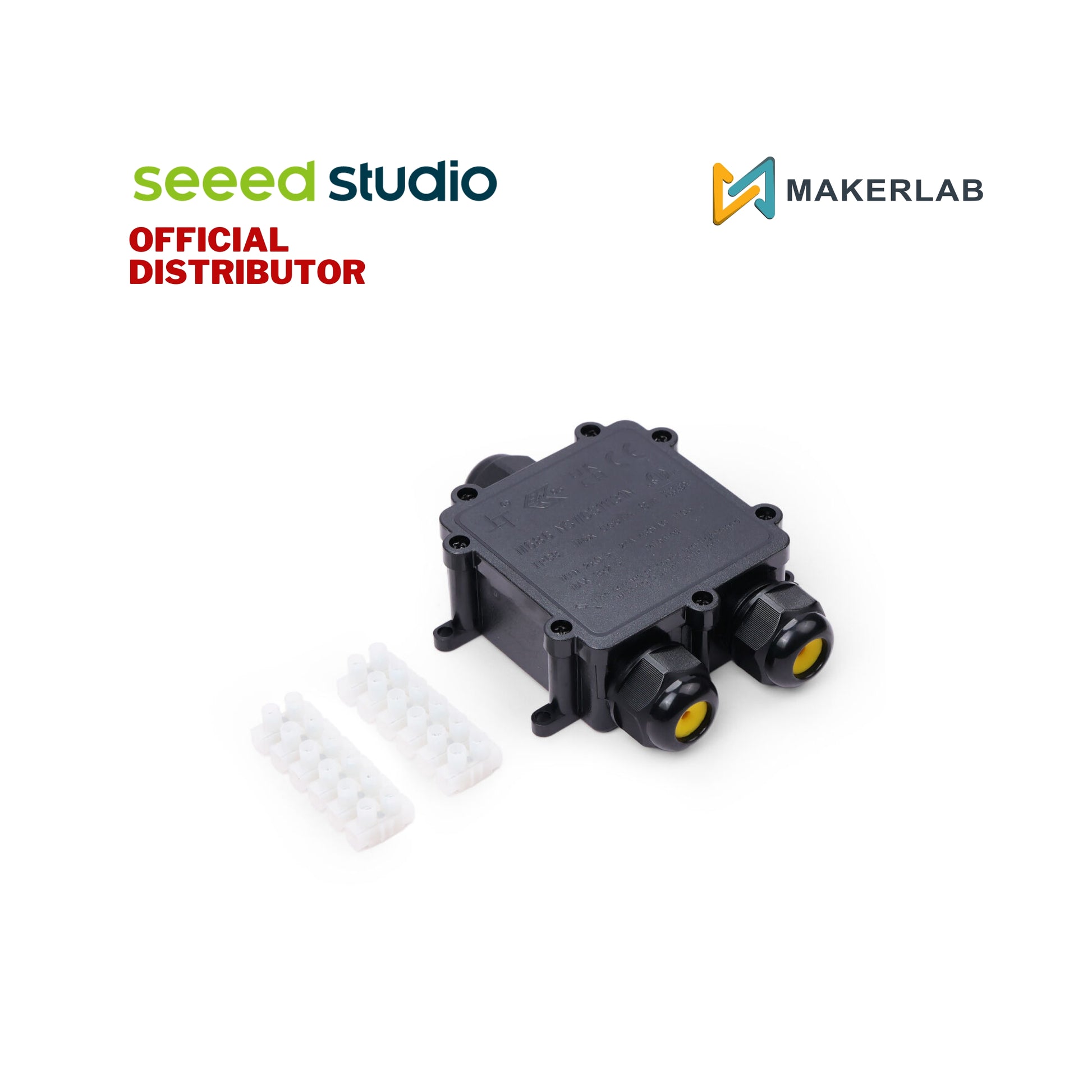

Part List:
1x Housing
1x M12 Cable
8x Self-tapping Screw
1x Screwdriver
1x Waterproof Tape
2x Connection Terminal
Documents:
