Description:

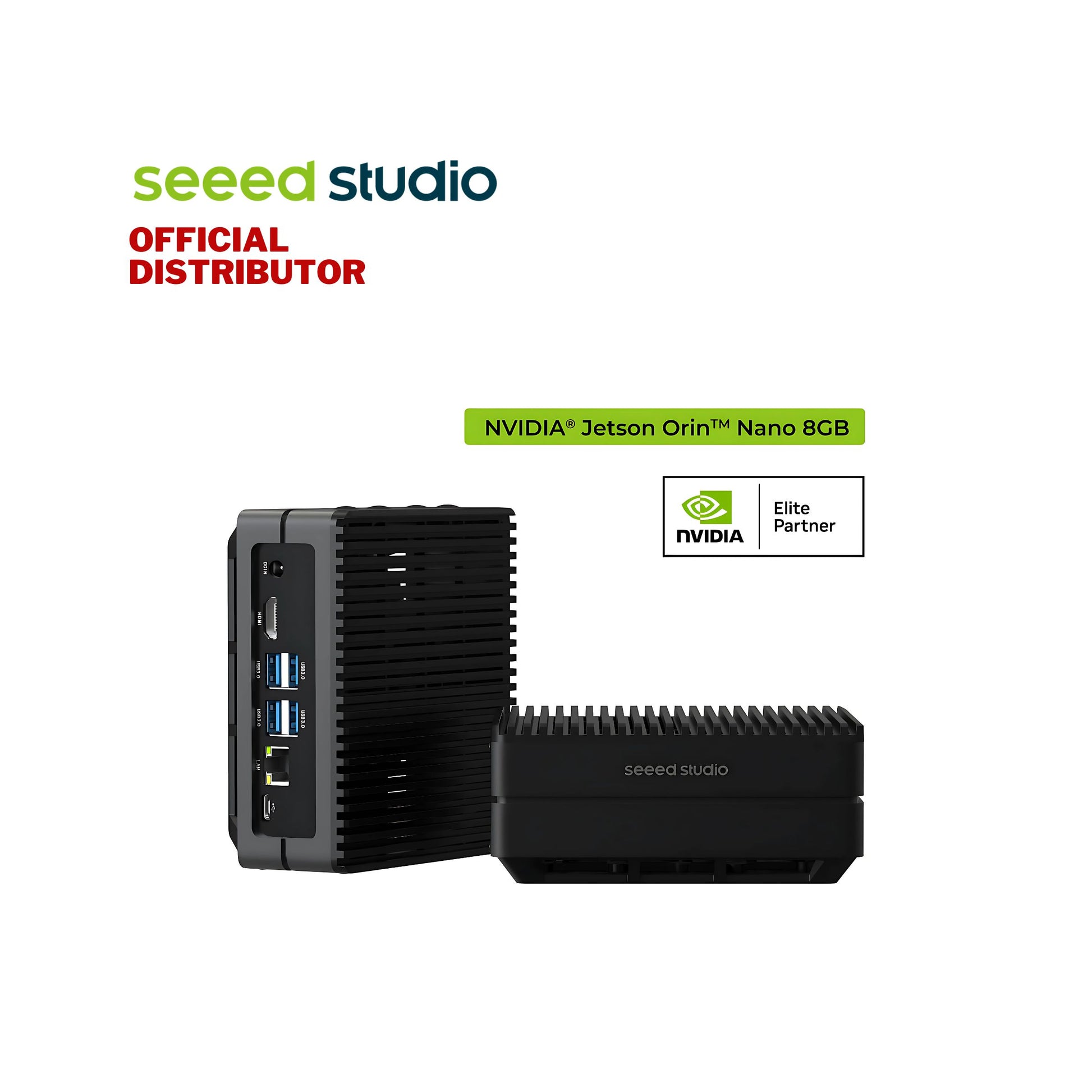

The reComputer J3011 is a powerful and compact edge AI device with NVIDIA® Jetson Orin™ Nano SoM, pre-built Jetpack 5.1.1 (super with JP6.2), 128GB SSD, 4x USB 3.2, HDMI, GbE, carrier board also includes M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, 40-pin and more.
The reComputer J3011 is equipped with the same NVIDIA Jetson Orin Nano 8GB production module. You can perform a self-upgrade to Jetpack 6.2. Once upgraded, you'll instantly experience a significant boost in computing power, with the performance leaping from 40 TOPS to 67 TOPS, offering capabilities comparable to those of the NVIDIA Jetson Orin Nano Super Developer Kit. For optimal performance with reComputer, we recommend using 128GB / 256GB / 512GB / 1TB SSDs from Seeed. Since some SSDs on the market may only be compatible with specific JetPack versions, which may cause the device to fail to function properly, and this issue is also present with official NVIDIA dev kits.
Features:
Processing: Powered by the NVIDIA Jetson Orin Nano with 8GB of RAM.
AI Performance: Offers 40 TOPS (Tera Operations Per Second) of AI performance, which can be boosted to 67 TOPS by flashing JP6.2 (JetPack 6.2).
Wide Range Operation Temperature: Designed to operate in temperatures from -10°C to 60°C.
Power Efficient: Consumes between 7W - 15W.
Open Source Hardware: Commitment to flexibility and community-driven development.
Specifications:
Jetson Orin Nano System on Module
AI Performance: up to 67 TOPS
GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores (Orin Nano 8GB)
CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory: 8GB 128-bit LPDDR5 68 GB/s (Orin Nano 8GB)
Video Encoder: 1080p30 supported by 1-2 CPU cores
Video Decoder: 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
Carrier Board
Storage: 1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Ethernet: 1x RJ-45 Gigabit Ethernet (10/100/1000M)
M.2 KEY E: 1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module)
USB: 4x USB 3.2 Type-A (10Gbps), 1x USB2.0 Type-C (Device Mode)
Camera: 2x CSI (2-lane 15pin)
Display: 1x HDMI 2.1
Fan: 1x 4 pin Fan Connector (5V PWM)
CAN: 1x CAN
Multifunctional Port: 1x 40-Pin Expansion header; 1x 12-Pin Control and UART header
RTC: 1x RTC 2-pin, supports CR1220 but not included
Power: 9-19V DC

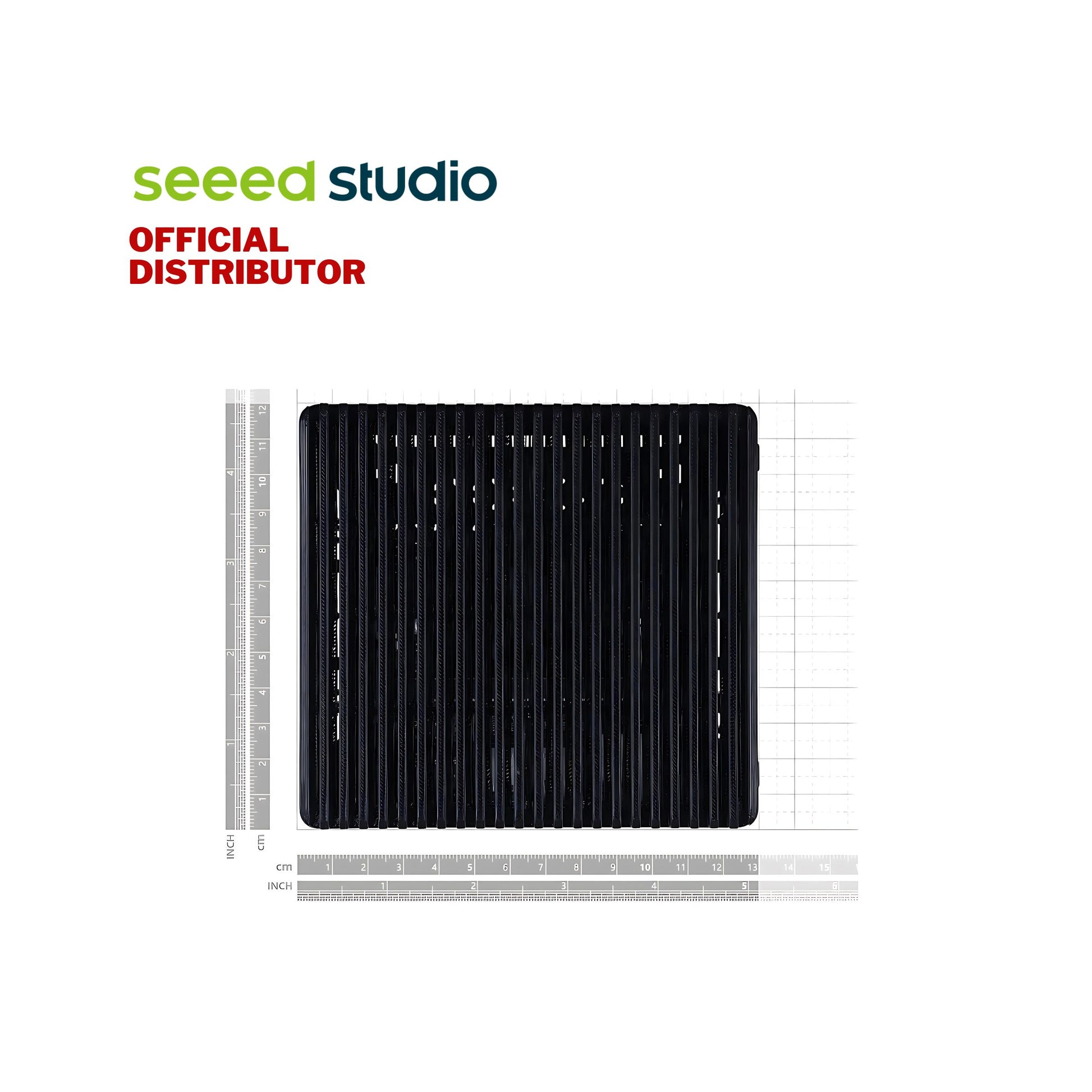

Dimensions (W x D x H): 130mm x 120mm x 58.5mm (with case)
Installation: Desk, wall-mounting
Operating Temperature: -10℃~60℃
Hardware Overview:

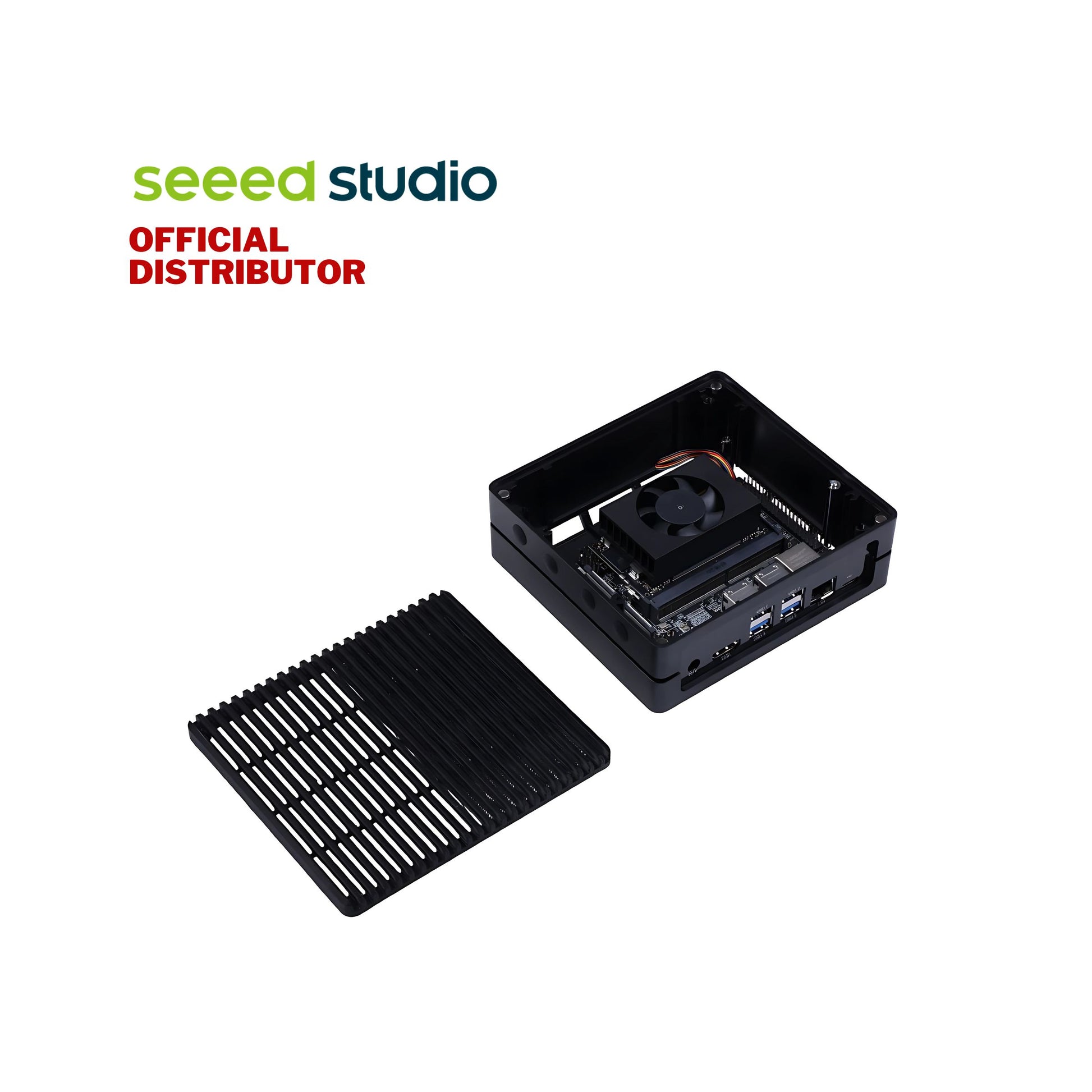

reComputer J401 carrier board, included in the full system - reComputer J3011

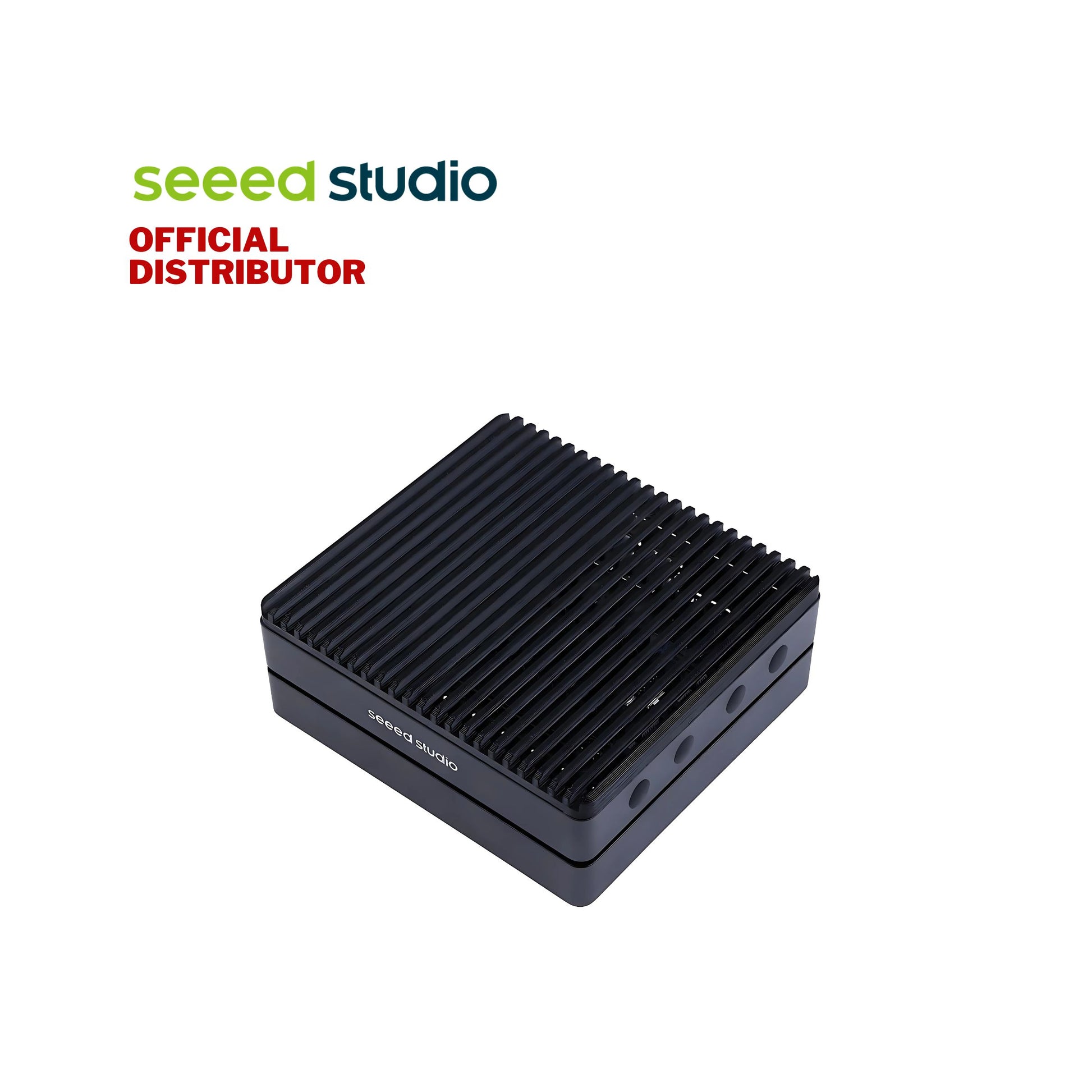

Desktop, Wall Mount, Expandable, or Fit Anywhere
Application:
- AI Video Analytics
- Machine Vision
- Autonomous Mobile Robot (AMR)
- Generative AI
Documents:

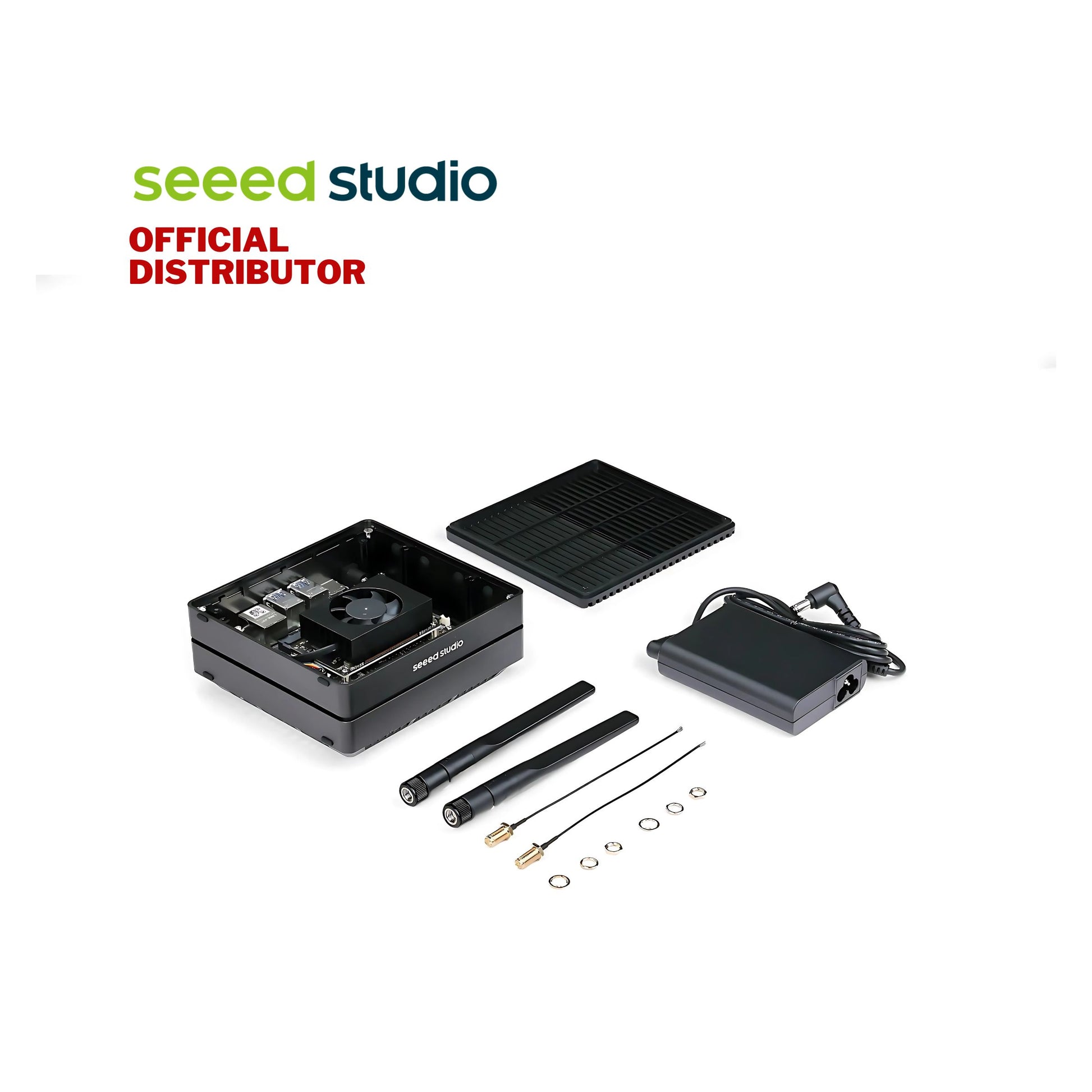

Part List:
1x reComputer J3011 (System Installed)

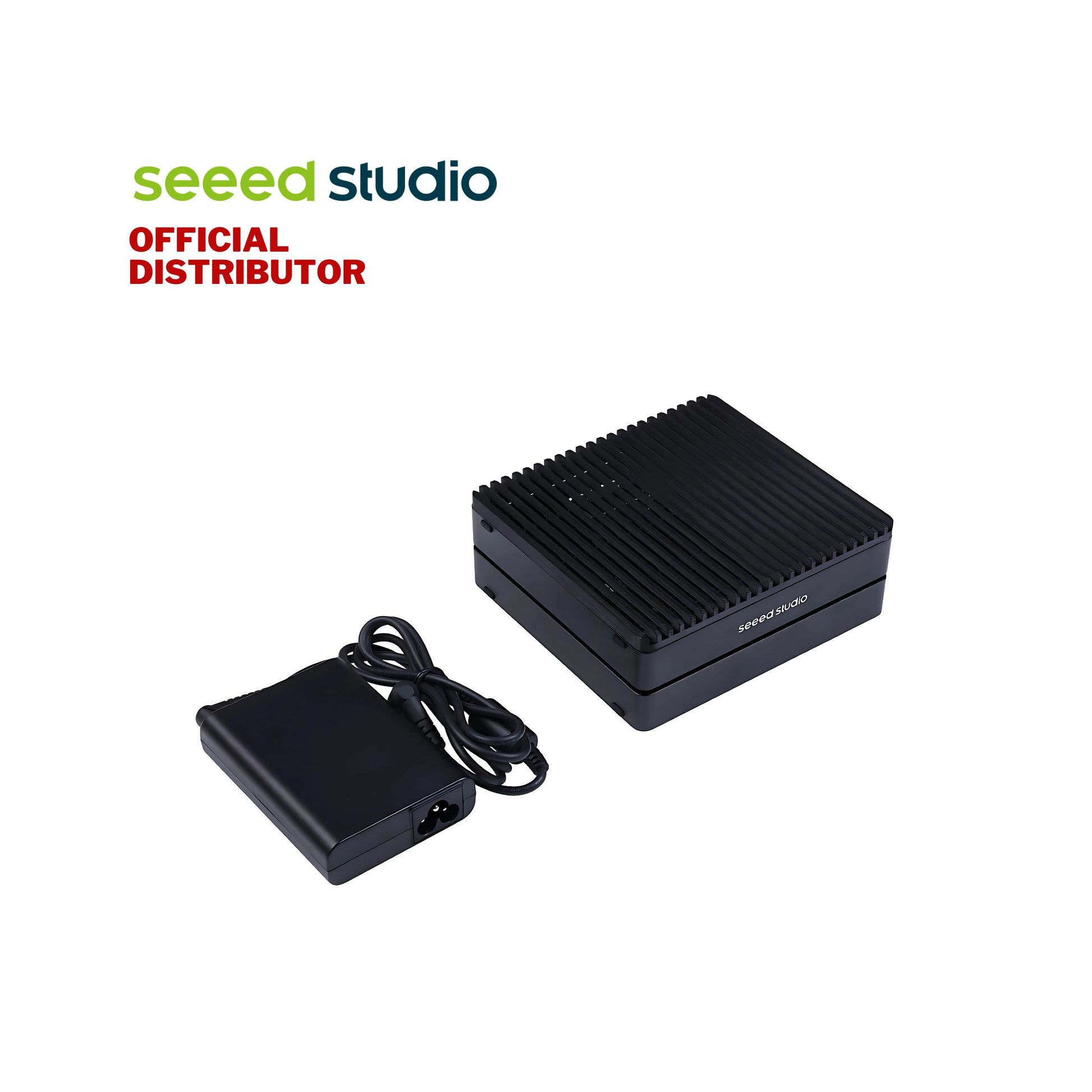

1x 12V/5A (Barrel Jack 5.5/2.5mm) Power Adapter (Power cord not included)
Note: Please note that the product comes with a power adapter, but does not include an AC cloverleaf power cord. Kindly purchase the appropriate AC cloverleaf power cord based on your local power socket specifications.
