Description

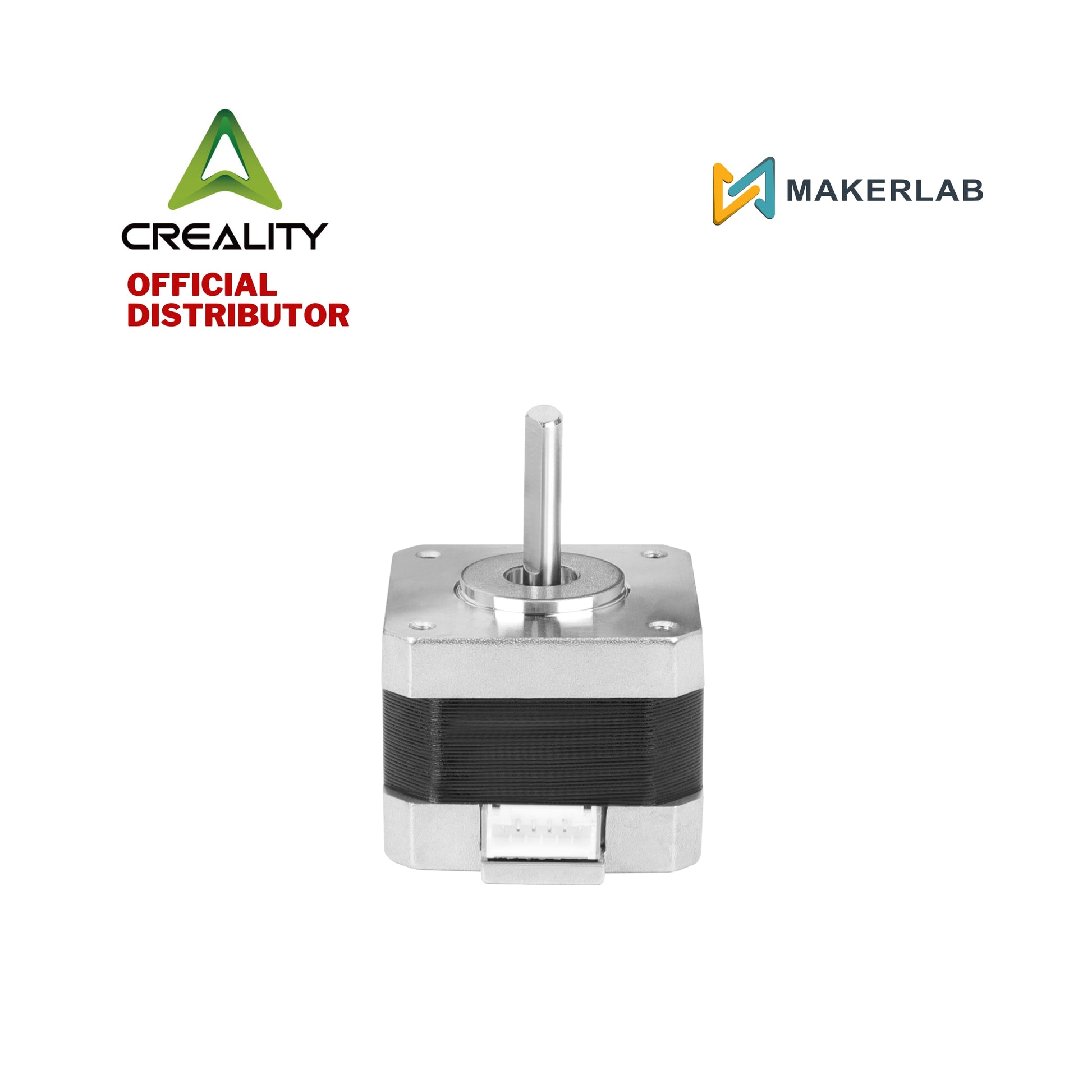

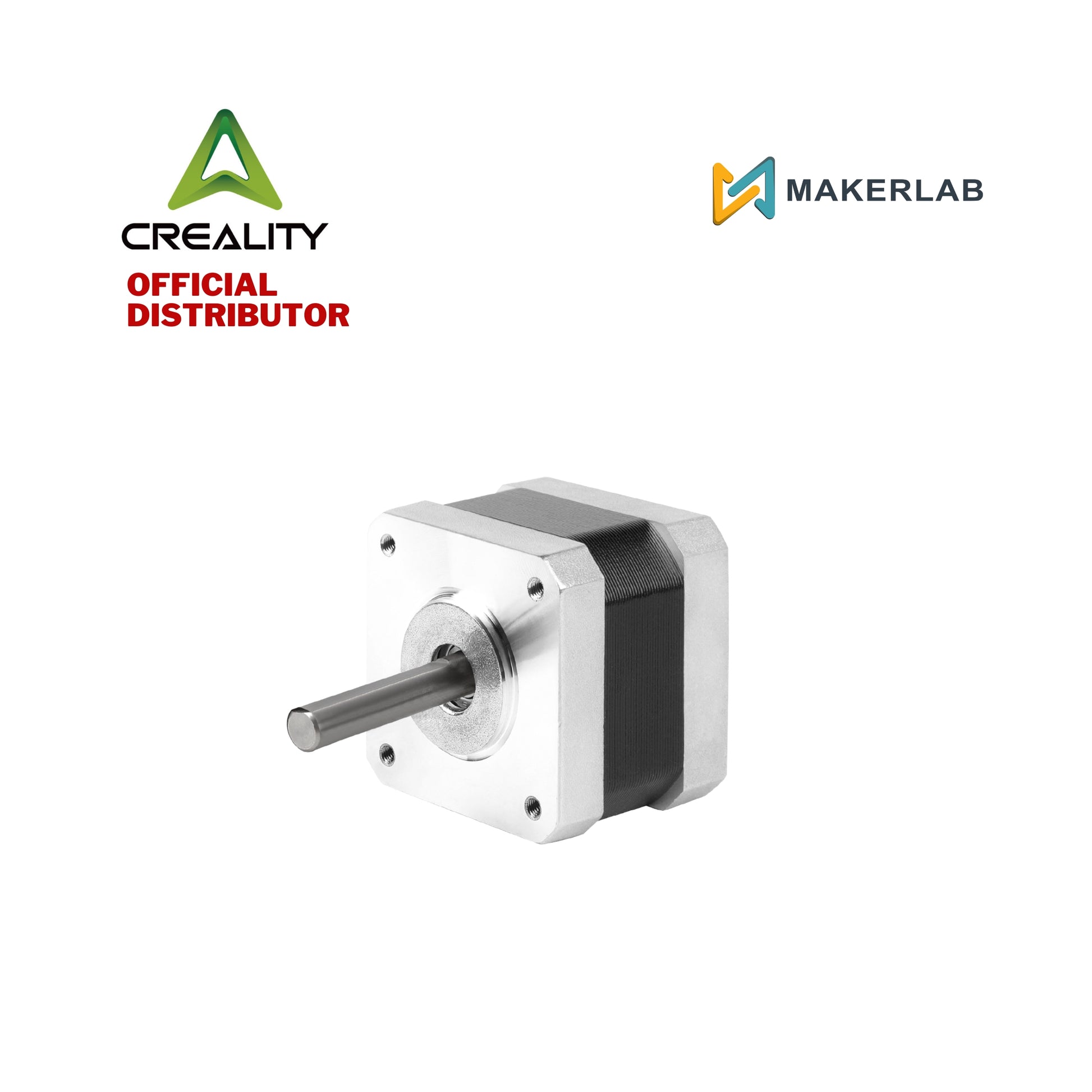

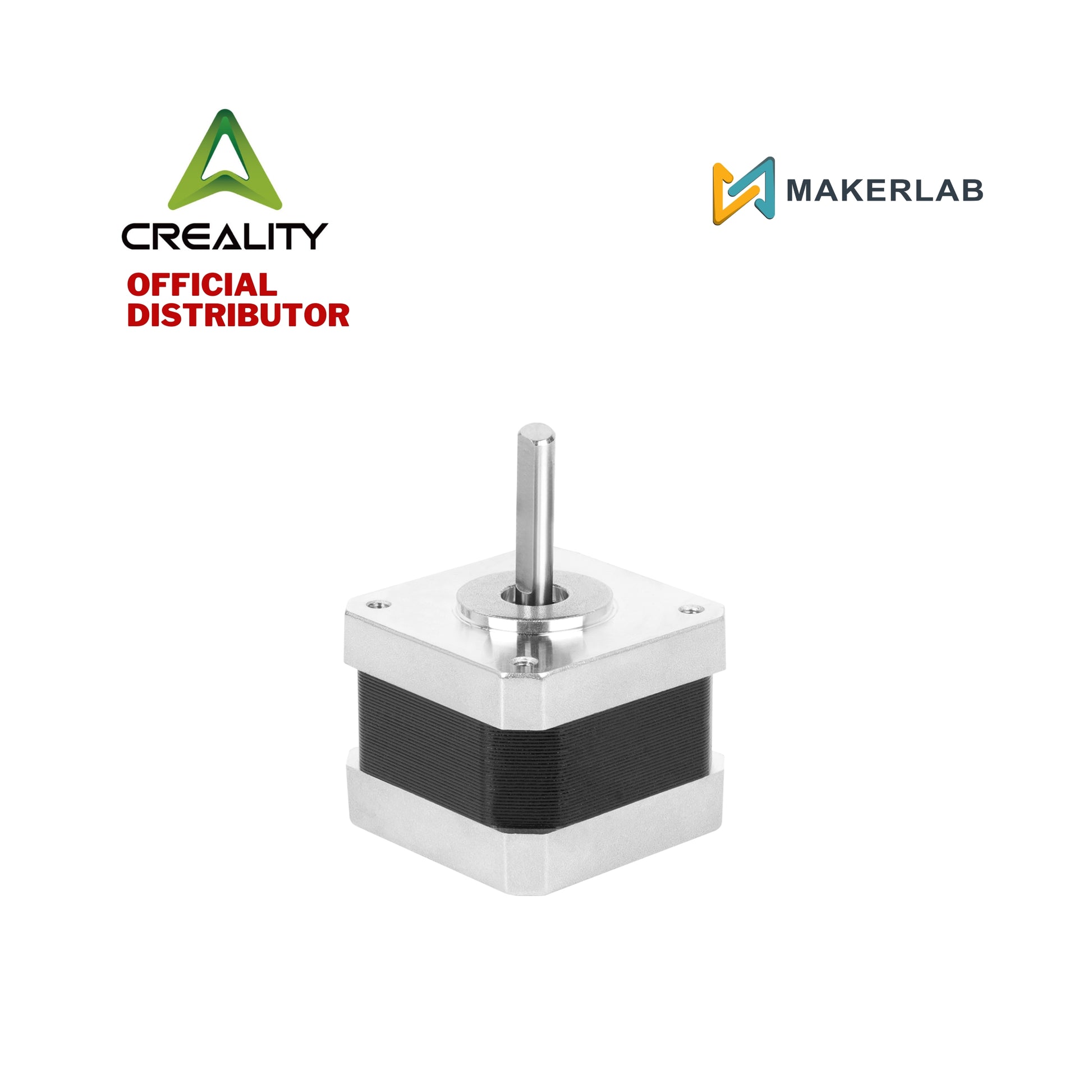

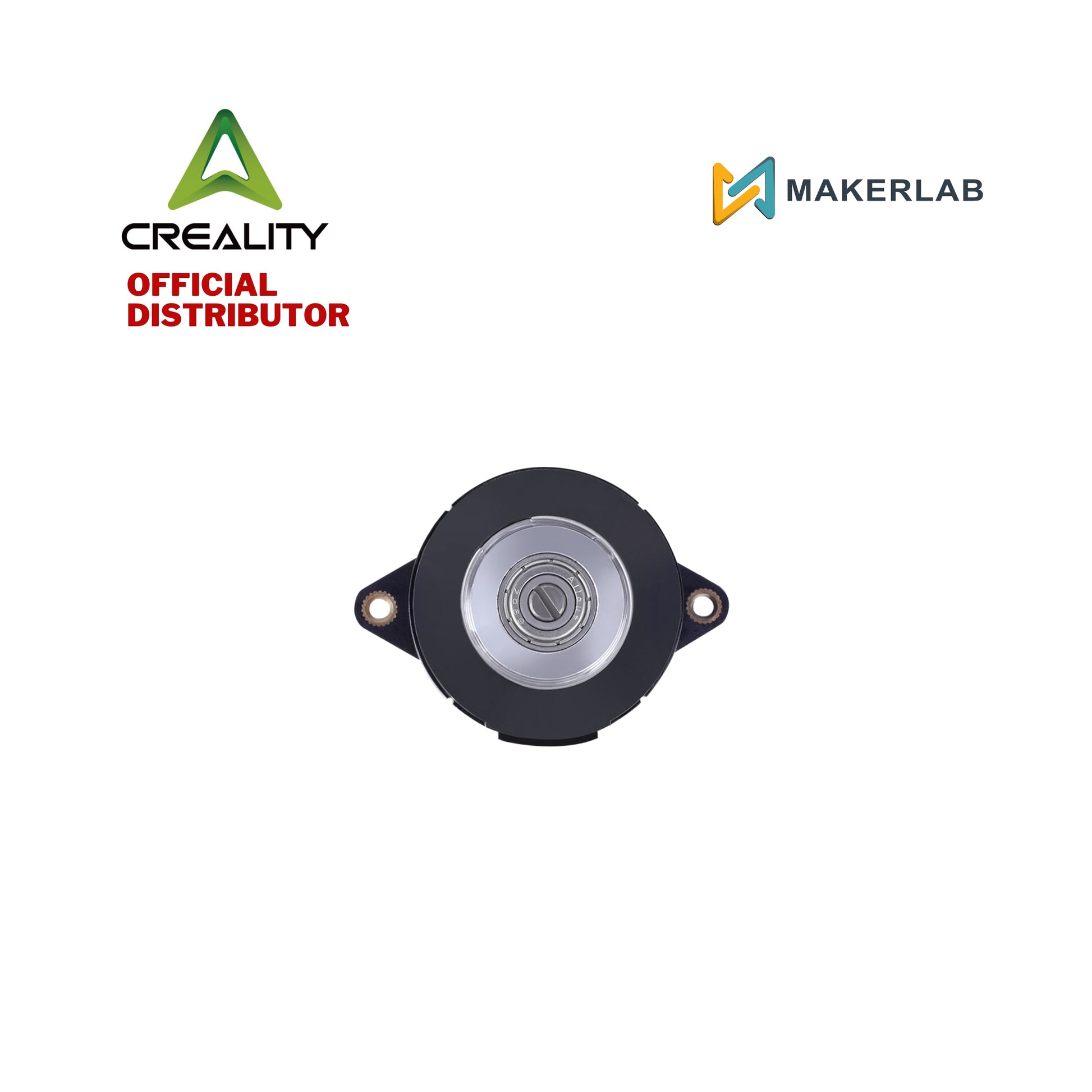

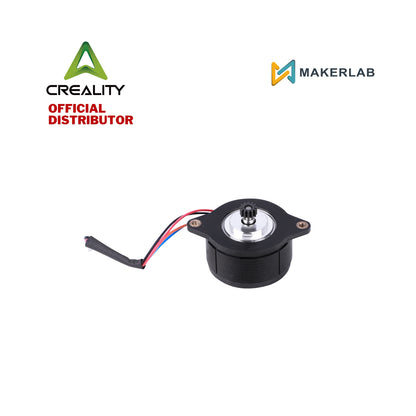

This motor set is essential for maintaining the heavy-duty vertical and material-feeding requirements of the Ender-5 Max. The Z-Axis Motor is a robust 42-48 unit responsible for lifting the large cantilevered build plate; its high torque ensures the bed remains stable even when carrying heavy, large-format prints.

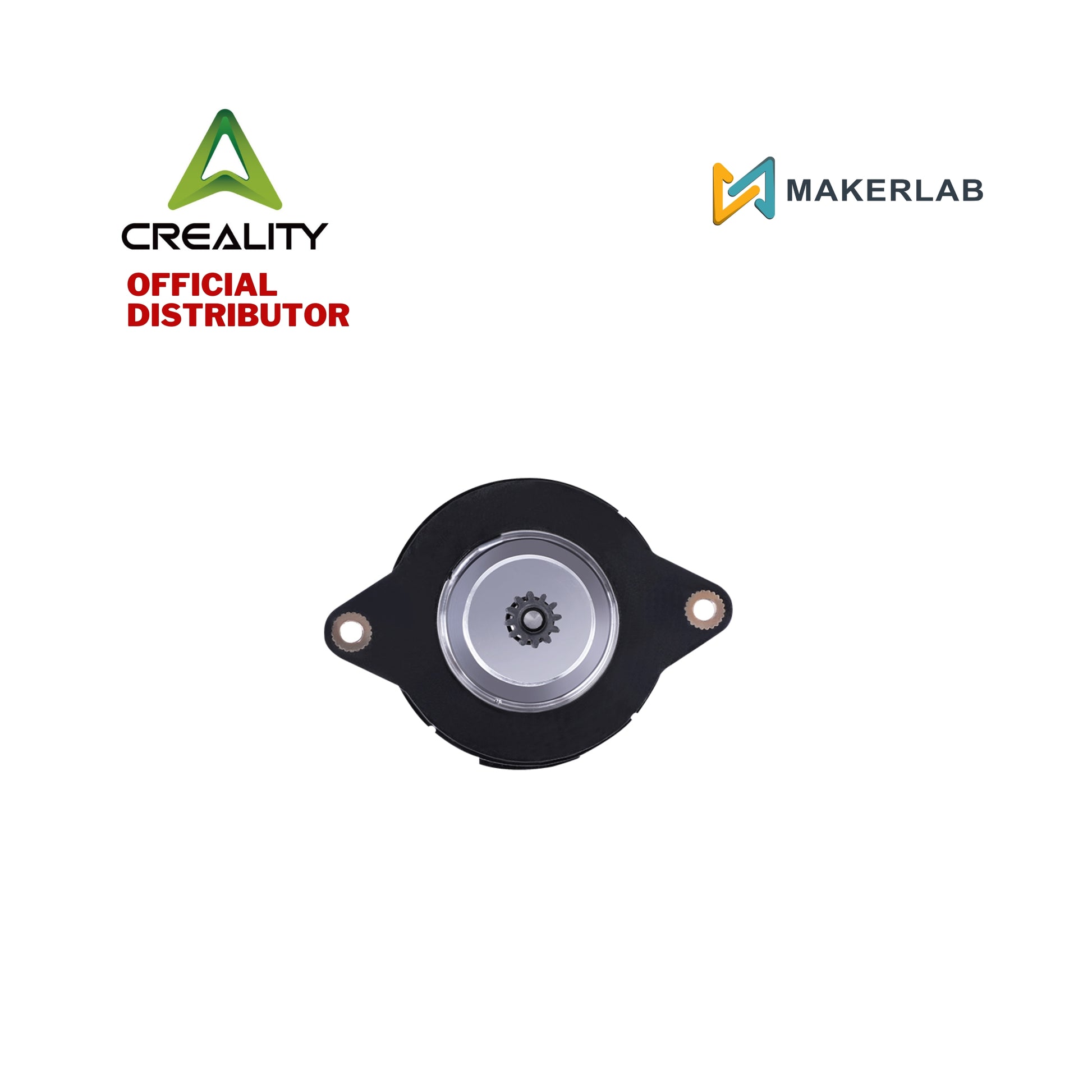

The E-Axis Motor is a 42-40 unit designed for the extruder. It provides the consistent rotational force needed to push filament through the long Bowden tube of the Ender-5 Max without slipping or grinding. Both motors feature a 1.8° step angle for fine resolution and are "plug-and-play" with the printer's existing wiring harness.
Features
Application-Specific Torque: The Z-motor features a larger body (48mm) to handle the weight of the build plate, while the E-motor (40mm) is optimized for the continuous feeding cycles of extrusion.
Integrated D-Shaft: Both motors come with a "D-shaped" output shaft, which provides a flat surface for the set screws of the lead screw coupler or extruder gear to lock onto, preventing slippage.
Low Noise & Vibration: Precision-wound coils and high-quality internal bearings ensure smooth stepping, reducing "salmon skin" artifacts on print surfaces.
Efficient Heat Dissipation: Metal housing acts as a passive heatsink, allowing the motors to operate reliably during multi-day print jobs.
OEM Compatibility: Features standard 6-pin JST-style connectors (using 4 pins) to match the stock Creality stepper cables.
Specifications
Product Code:
Z-Axis Motor (3204120109)
E-Axis Motor (3204120216)
Model Size:
Z-Axis Motor - 42-48
E-Axis Motor - 42-40
Step Angle: 1.8°
Rated Voltage: 24V DC
Shaft Shape: D-Type
Holding Torque:
Z-Axis Motor - ~0.55 N·m
E-Axis Motor - ~0.45 N·m
Phase Current:
Z-Axis Motor - 1.5A
E-Axis Motor - 1.0A
Shaft Diameter: 5mm
