Description:

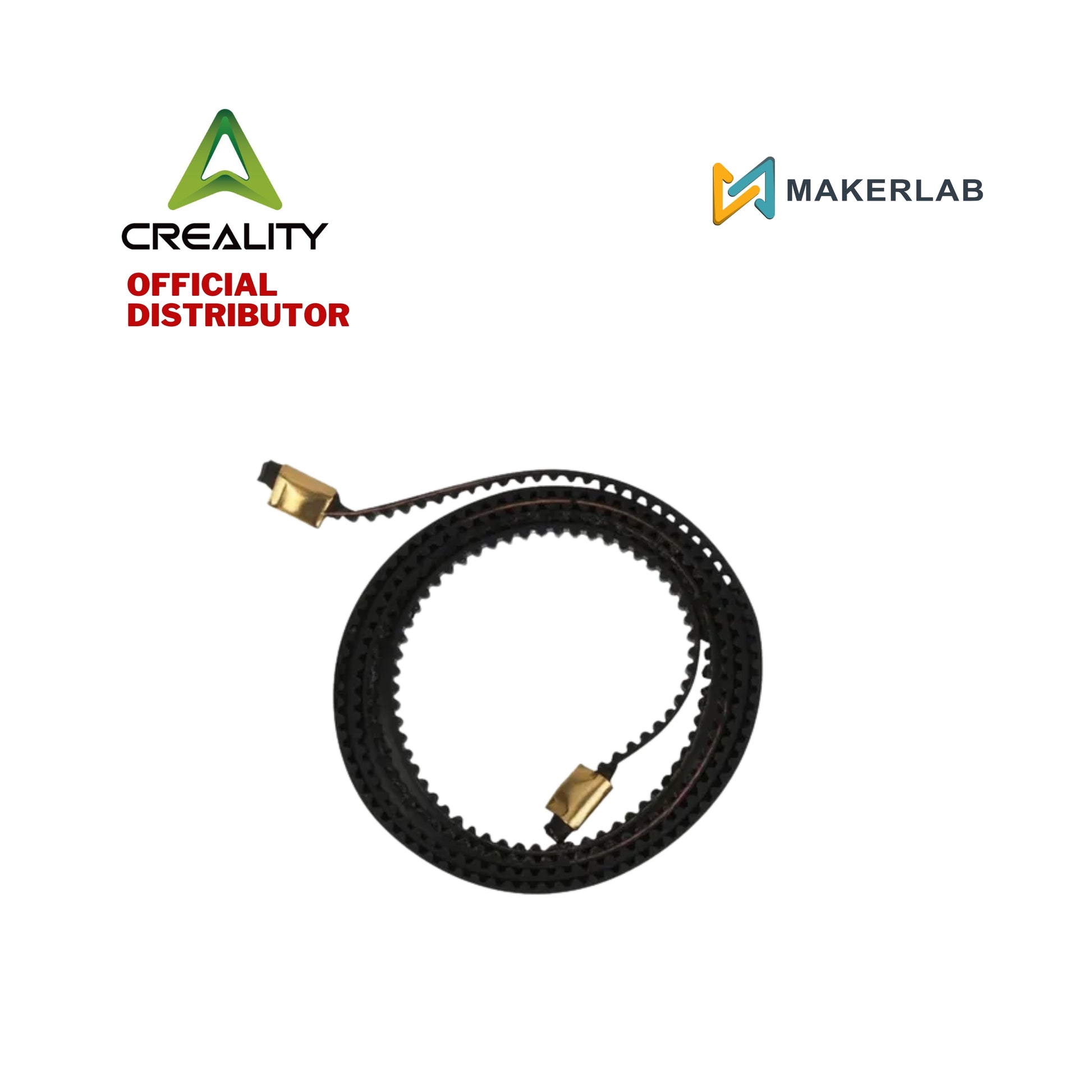

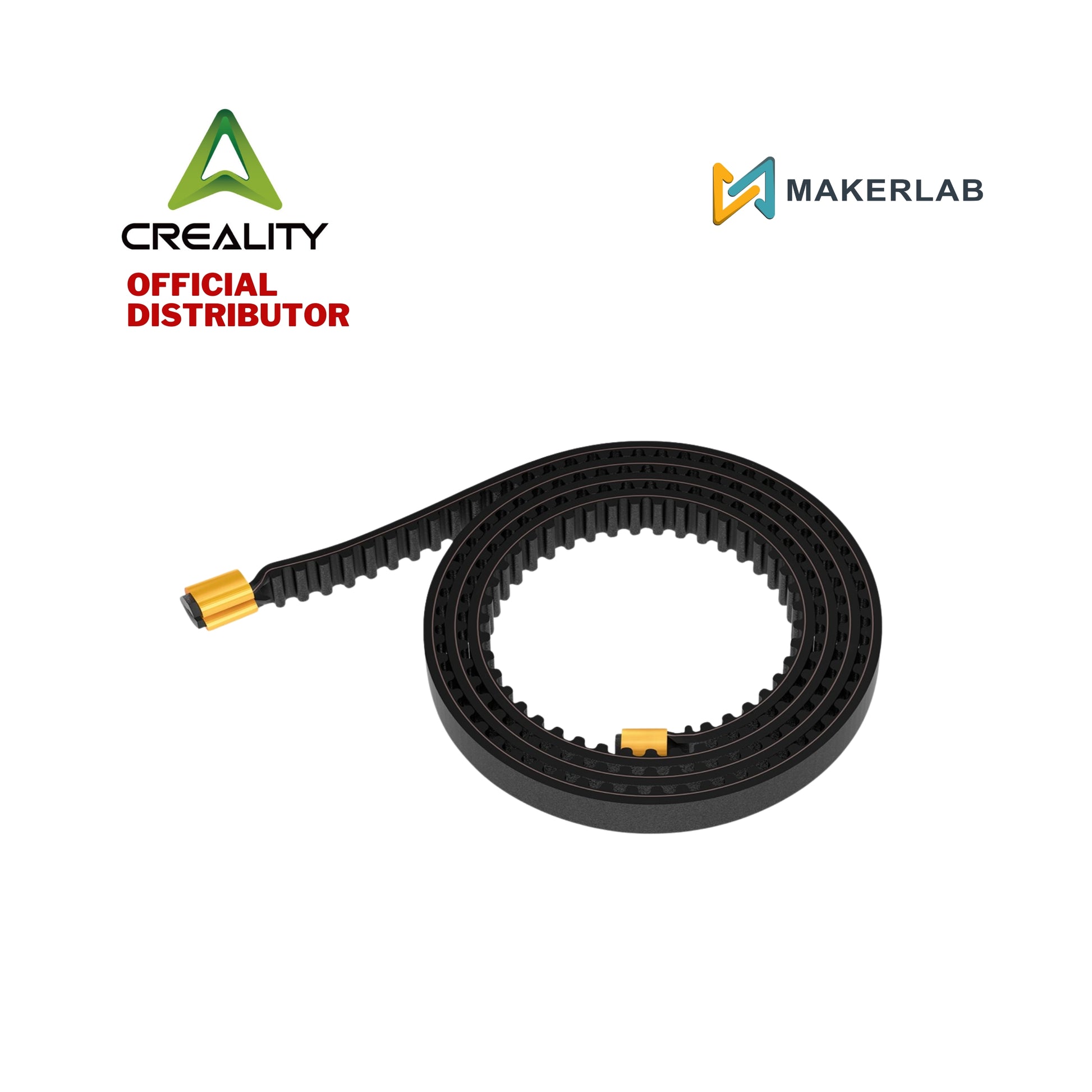

The Creality Belt Assemblies are precision-crafted timing belts designed to restore factory-level accuracy to your 3D printer. These are not generic belt rolls; they are pre-cut to the exact lengths required for the Ender-3 V3 SE and come with pre-crimped brass buckles at both ends.
Constructed from high-density neoprene rubber and reinforced with fiberglass tensile cords, these belts are built to handle the high accelerations and 250 mm/s printing speeds of the V3 SE. The fiberglass core ensures the belts do not stretch over time, which is critical for preventing layer shifts and "ghosting" artifacts. The teeth are precisely molded to the GT2 (2mm pitch) standard, providing a perfect, non-slip interface with the motor pulleys.
Features:
Plug-and-Play Installation: Pre-pressed copper/brass buckles allow for immediate installation without the need for manual cutting or crimping.
High Tensile Strength: Internal fiberglass reinforcement prevents elongation, maintaining consistent tension even during long-duration prints.
High-Speed Stability: Specifically optimized for the high-speed motion of the V3 SE, reducing vibration and mechanical noise.
Wear-Resistant: The tooth profile is treated to minimize friction and prevent the shedding of rubber particles into the printer's V-slots.
Precision Timing: The GT2 2mm pitch ensures exact positioning, resulting in superior surface finishes and dimensional accuracy.
Specifications:
Manufacturer: Creality 3D
Length:
Y-Axis Belt - 0.628m (628mm)
X-Axis Belt - 0.71m (710mm)
Width: 6 mm
Pitch: 2 mm (GT2)
Compatibility: Ender-3 V3 SE
Material: Neoprene + Fiberglass Core
Ends: Pre-Crimped Brass Buckles
