Description:

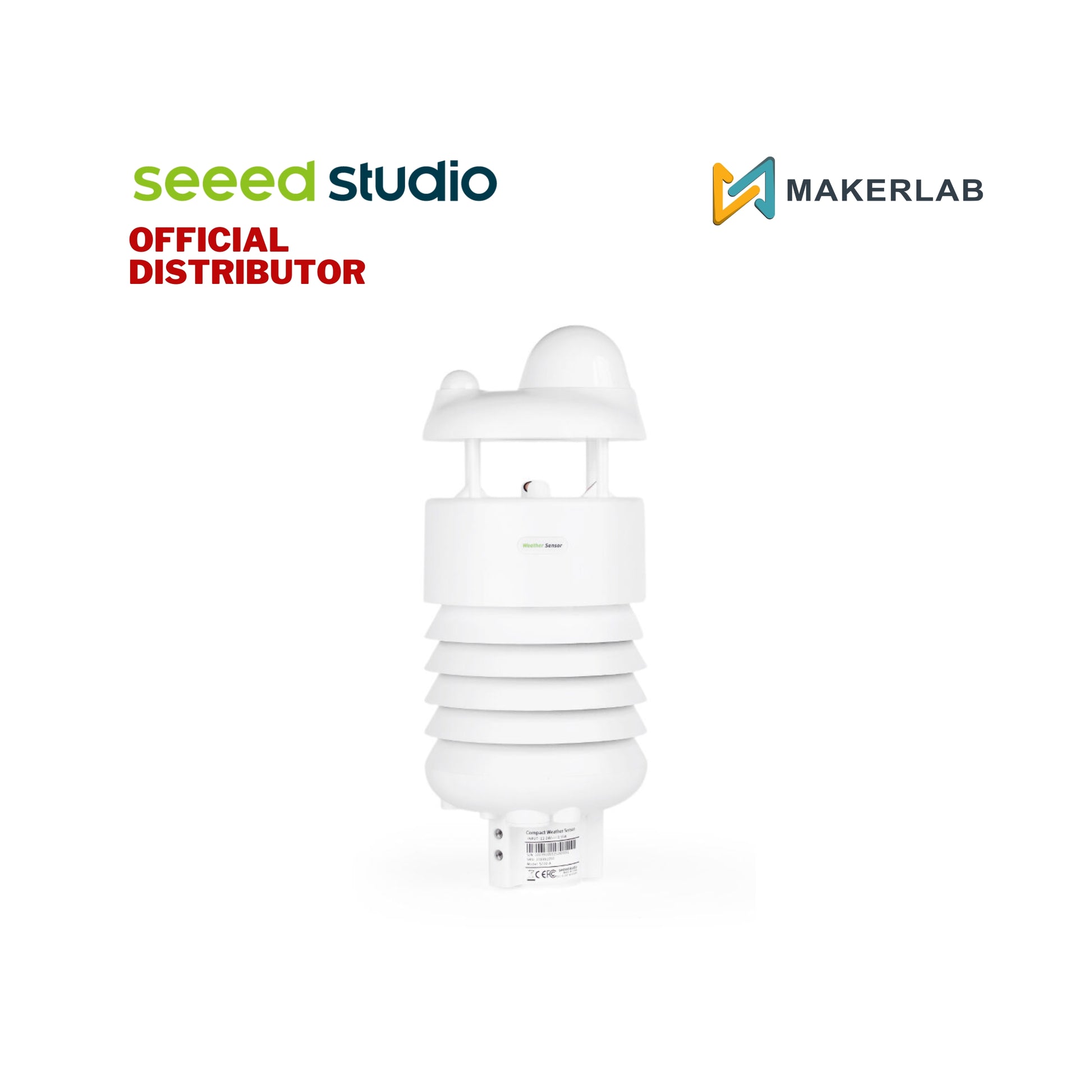

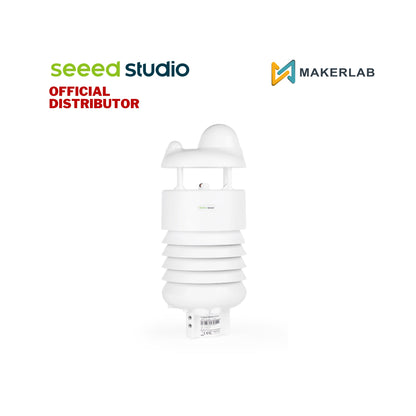

S700 7-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, light intensity, rainfall (radar), wind speed, and wind direction (ultrasonic). It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities.
Features:
-
7 parameters measurement: Measures air temperature, relative humidity, barometric pressure, light intensity, precipitation intensity(radar), wind speed, and wind direction in 1 single sensor
-
Industrial-level design: -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
-
Output interface: RS485 (MODBUS-RTU) / SDI-12
-
Thermostatically-controlled heating system: Independent heating power supply for use in extremely cold environments
-

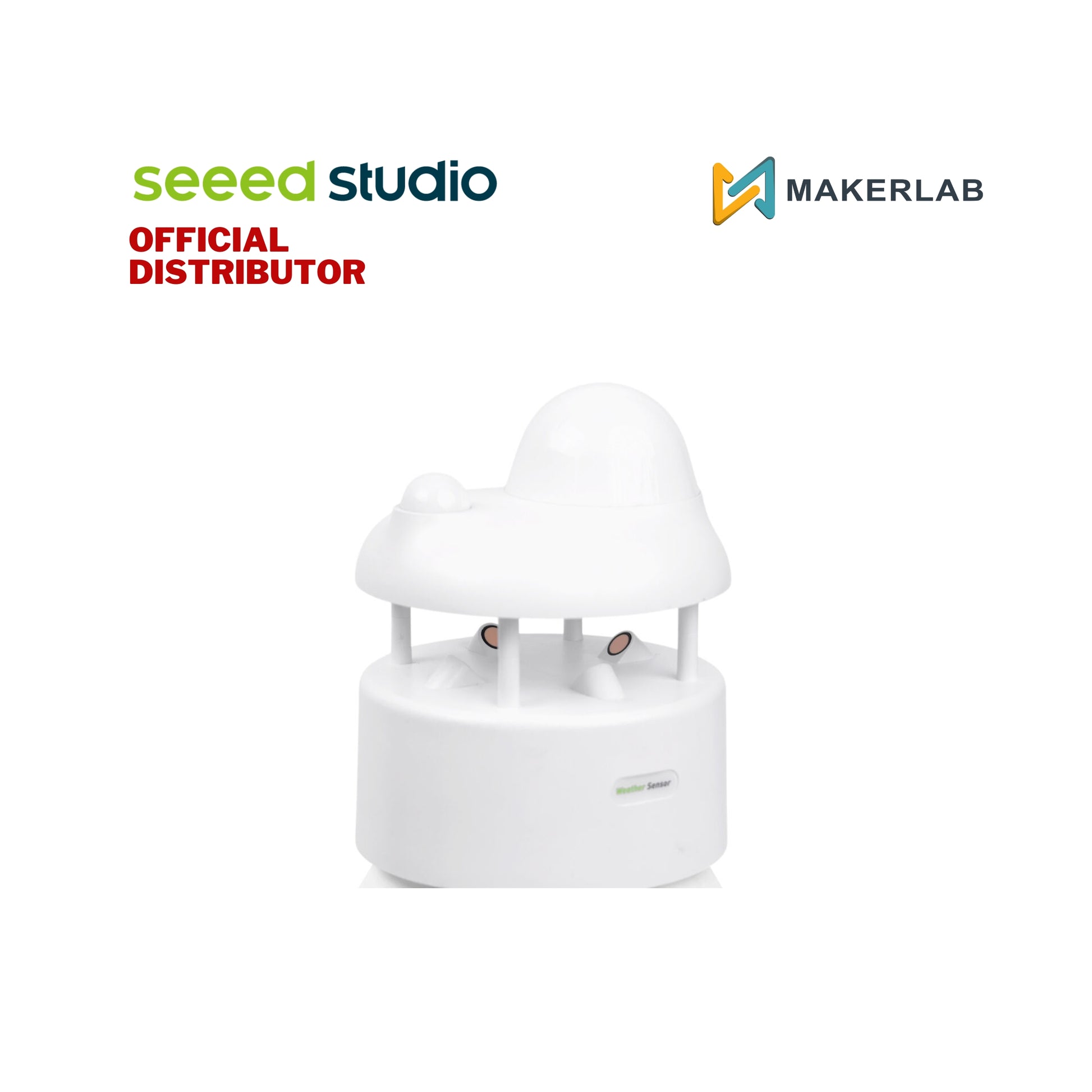

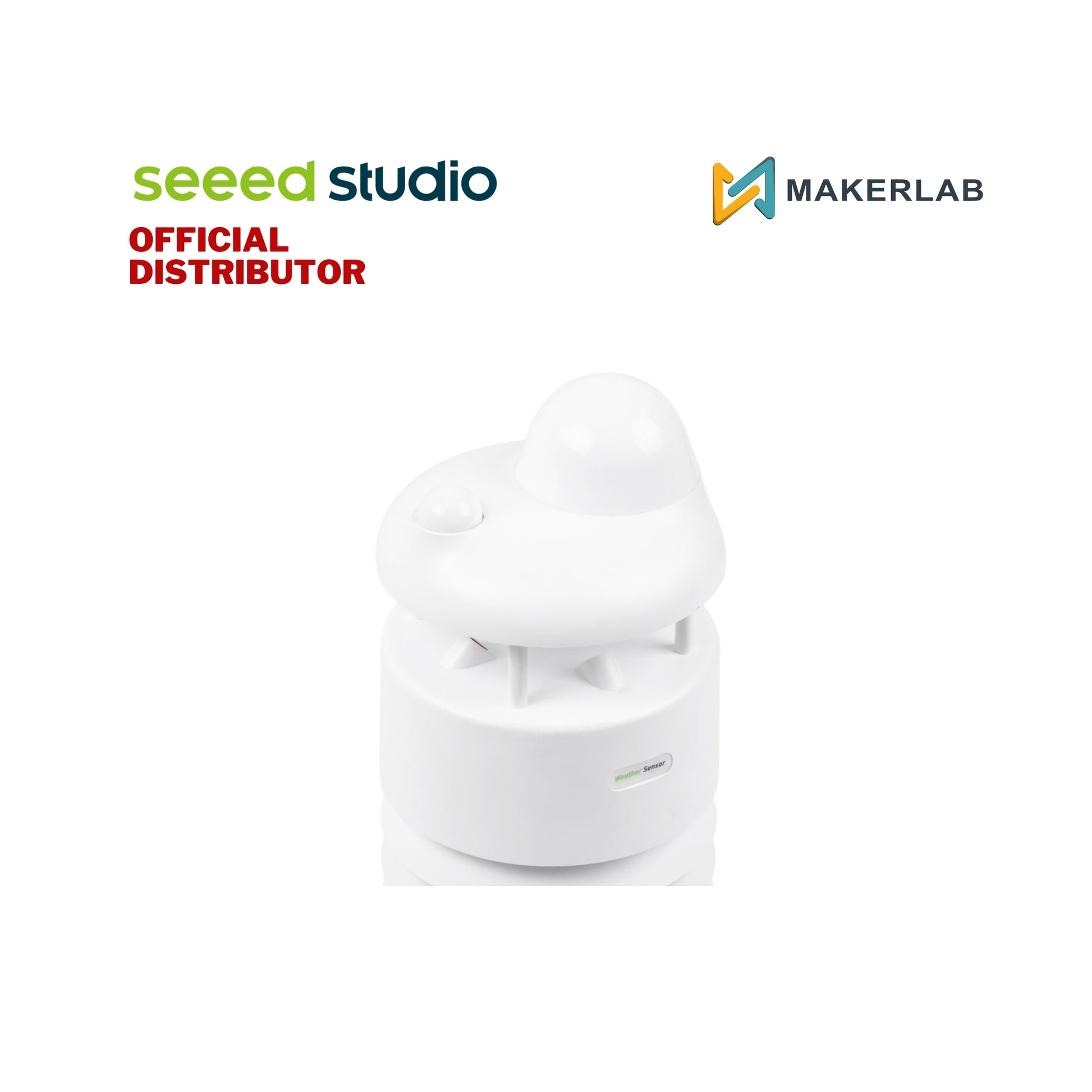

Powerful Components Included: A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts
-
High-performance Guarantee
-
Radar rainfall monitoring: Utilizes electromagnetic wave scattering analysis to measure precipitation intensity. It has a larger measuring range and higher accuracy, making it suitable for large-scale precipitation monitoring.
We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP ONE Serials Sensor went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions.
-
Wind tunnel for wind calibration
-
High-Low Temperature Test - determine performance under adverse temperature conditions.
-
Structural Test - whether the collected values of multiple devices are consistent
-
x-y-z vibration test
-
Waterproof and air tightness test
-
R&D and Production Test - to test the pass rate of multiple devices under factory conditions
Applications:
Hardware Overview:
Specifications:
General Parameters
Parameters Measured: air temperature, relative humidity, barometric pressure, wind speed, wind direction, rainfall intensity (radar) and light intensity
Protocol: RS485 (MODBUS-RTU) / SDI-12
Power Supply:
12V~24V
24V(Heating power supply)
Cable Length: 3m
Operating Temperature & Humidity: -40 °C ~ + 85 °C, 0 ~ 100%RH
IP Rating: IP66
Device Weight: 2kg
Air Temperature
Range: 40 °C ~ + 85 °C
Accuracy: ± 0.1℃
Resolution: 0.01 ℃
Air Humidity
Range: 0 ~ 100% RH
Accuracy: ± 1.5% RH
Resolution: 0.01% RH
Barometric Pressure
Range: 300 ~ 1250 hPa
Accuracy: ± 50 Pa
Resolution: 10 Pa
Wind Speed (Ultrasonic)
Range:
0~60 m/s standard range
0~75m/s extended range
Up to 80m/s withstand range
Accuracy:
±0.3m/s(≤10m/s);
±3% (10m/s ~ 50m/s)
±5% (>50m/s)
Resolution: 0.1 m/s
Wind Direction (Ultrasonic)
Range: 0 ~ 360 °
Accuracy: ± 3.0°
Resolution: 0.1°
Rainfall Intensity （Radar）
Range: 0 ~ 300 mm/h
Accuracy: ± 10%(Generally high precision)
Resolution: 0.01 mm/h
Light Intensity
Range: 0 ~ 200,000 Lux
Accuracy: ± 5% of reading
Resolution: 5 Lux
