Description:

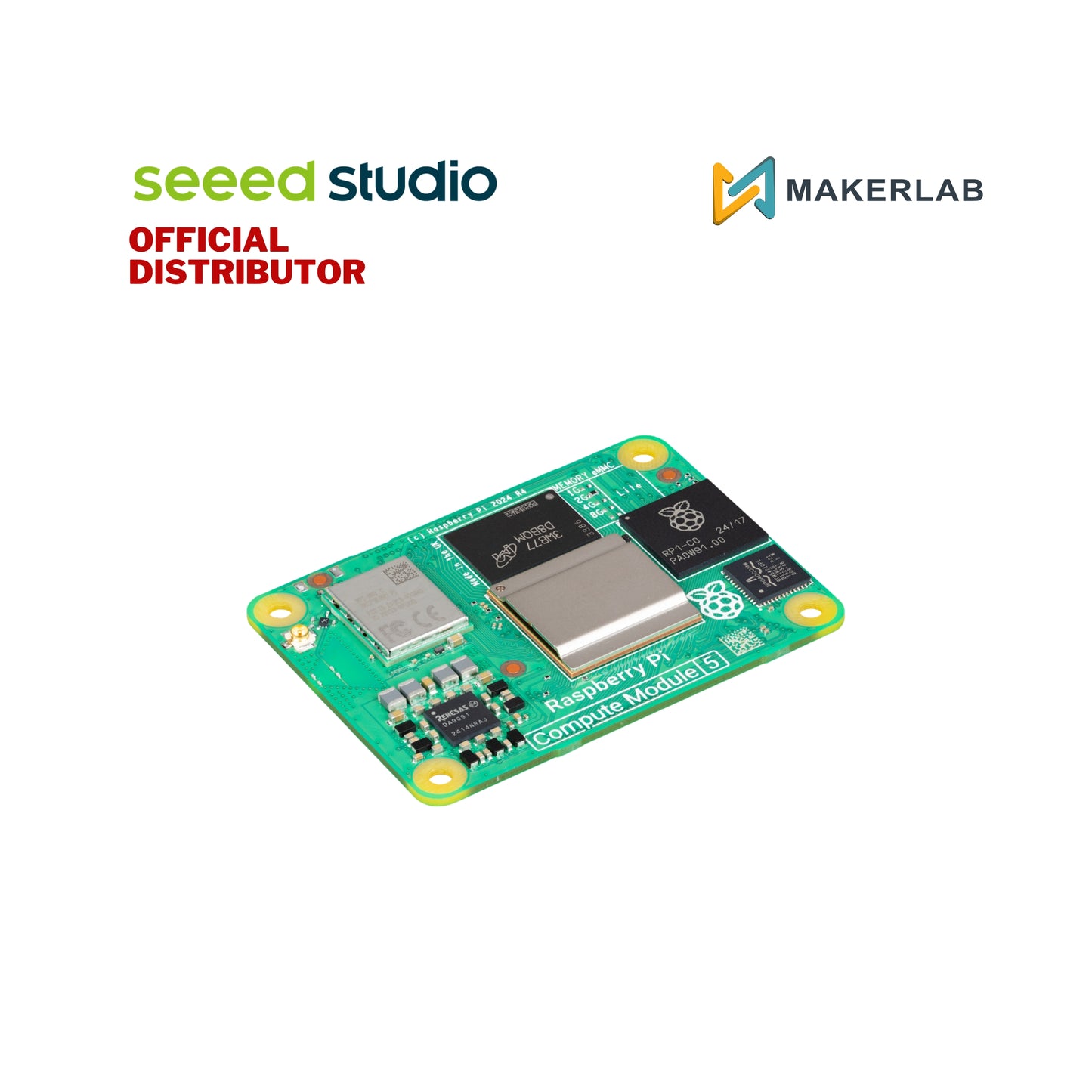

Raspberry Pi Compute Module 5 is a powerful system on module that delivers the performance of Raspberry Pi 5 in a compact form factor, making it ideal for embedded applications. Similar to Compute Module 4 (CM4), the CM5 offers a range of options for eMMC storage (from 0GB, 16GB, 32GB, and now 64GB) and SDRAM (2GB, 4GB, 8GB, and now 16GB), as well as both wireless and non-wireless versions.
This version of the Raspberry Pi Compute Module 5 includes a quad-core Arm Cortex-A76 processor, 16GB LPDDR4 RAM, 64GB eMMC, dual 4Kp60 HDMI output, hardware video decode at up to 4Kp60, Gigabit Ethernet, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0, USB 3.0, dual camera interfaces, and PCIe Gen 2 x1 interface.
Features:
-
High-performance quad-core Arm Cortex-A76 processor running at 2.4GHz, delivering exceptional computing power.
-
Dual 4Kp60 HDMI output for stunning visual experiences and multi-display support.
-
Optional certified wireless module providing IEEE 802.11 b/g/n/ac Wi-Fi and Bluetooth 5.0 connectivity.
-
Designed with B to B connectors for enhanced stability
-
Gigabit Ethernet PHY supporting IEEE 1588 for precise time synchronization.
-
Flexible memory options, including 2GB, 4GB, 8GB, or 16GB LPDDR4 SDRAM with ECC, and eMMC flash storage up to 64GB.
-
Extensive I/O interfaces, including PCIe 2.0, USB 3.0, MIPI DSI/CSI-2, and up to 30 GPIOs supporting various protocols (UART, I2C, SPI, etc.).
-
4Kp60 HEVC decoder and OpenGL ES 3.1 graphics with Vulkan 1.2 support for advanced multimedia capabilities.
Specifications:
Processor:
Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76
(Armv8) SoC @ 2.4GHz
Memory: 16GB LPDDR4
Storage: 64GB eMMC
Connectivity:
● 2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac wireless
● Bluetooth 5.0, BLE
● On-board electronic switch to select between PCB trace or
external antenna
Onboard Gigabit Ethernet PHY supporting IEEE1588
1 × USB 2.0 port (high speed)
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
1 × PCIe x1 root complex, Gen 2 (5Gbps)
Up to 30 × GPIO supporting either 1.8V or 3.3V signaling
and peripheral options:
● Up to 5 × UART
● Up to 5 × I2C
● Up to 5 × SPI
● 1 × SDIO interface
● 1 × DPI (parallel RGB display)
● 1 × I2S
● Up to 4 × PWM channels
● Up to 3 × GPCLK outputs
Video:
2 × HDMI 2.0 ports
(supports up to 4Kp60 on both ports simultaneously)
2 × 4-lane MIPI ports
supporting both DSI (display port) and CSI-2 (camera port)
Multimedia:
4Kp60 HEVC decoder
OpenGL ES 3.1 graphics, Vulkan 1.2
1 × SDIO 2.0 (CM5 Lite)
Input power: Single +5V PSU input supports USB PD for up to 5A @ 5V
Operating temperature: 20°C to +85°C
MTBF Ground Benign: 143 000 hours (168 000 hours CM5 Lite)
Dimensions: 55 mm × 40 mm x 4.7 mm
Production lifetime: Raspberry Pi Compute Module 5 will remain in production until at least January 2036
Hardware Overview:
Appplication:
Part List:
1 x Raspberry Pi Compute Module 5 - 16GB RAM, 64GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0
