Description

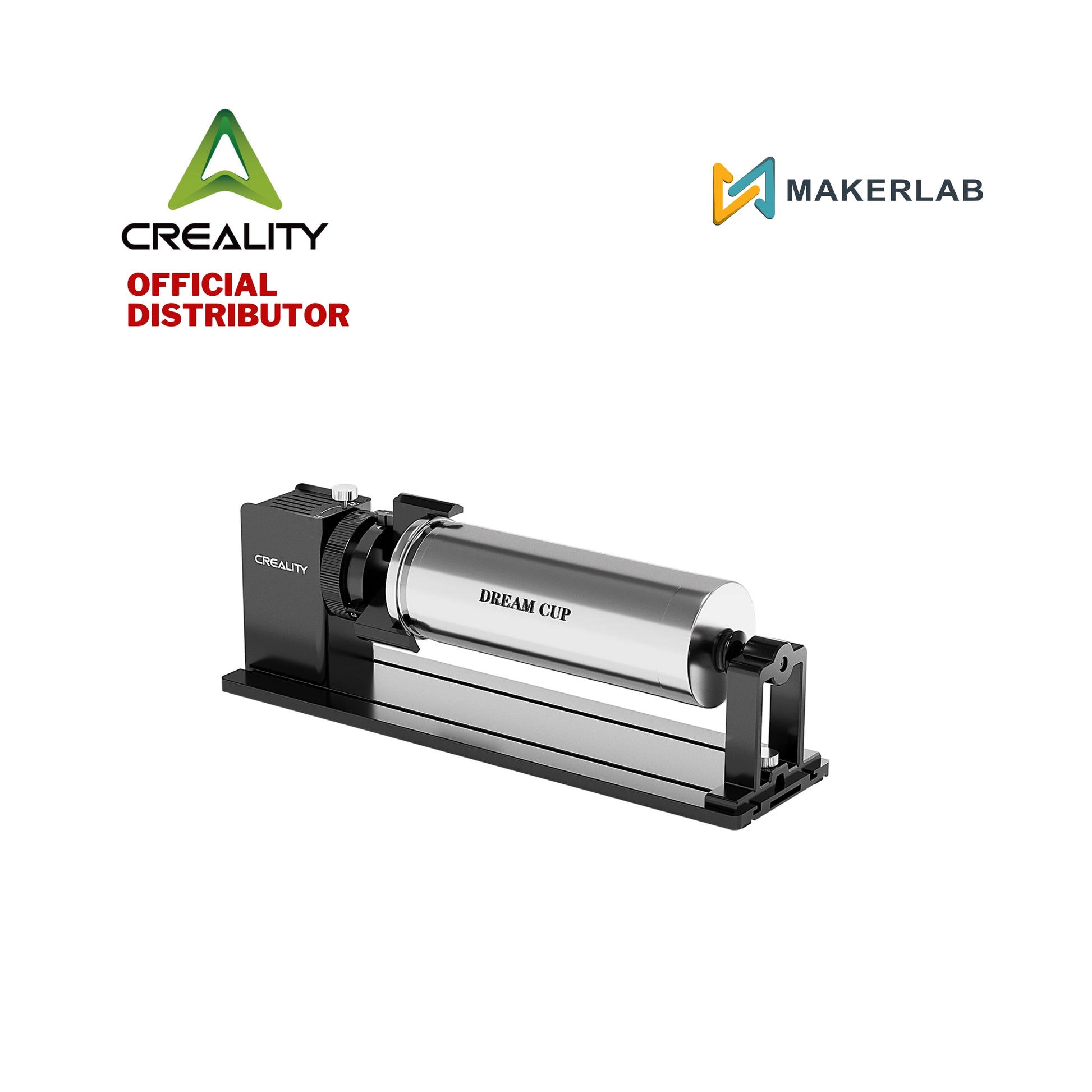

The Rotary Kit Pro Upgrade Package is a 3-in-1 rotary solution that allows you to engrave on cylindrical, conical, and even spherical objects. Unlike standard rollers that only support cylinders, this "Pro" version uses a multifunctional chuck system with adjustable jaws.

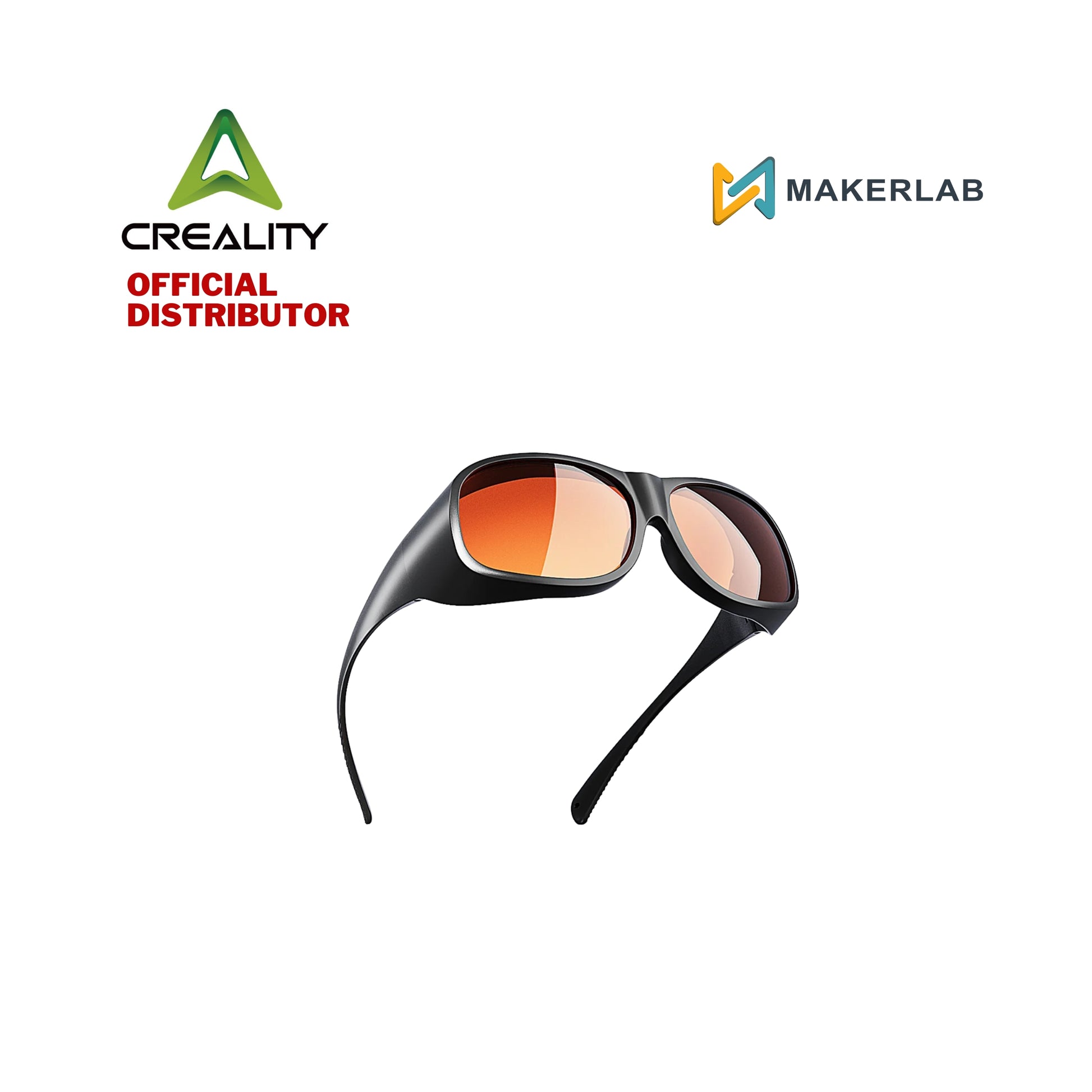

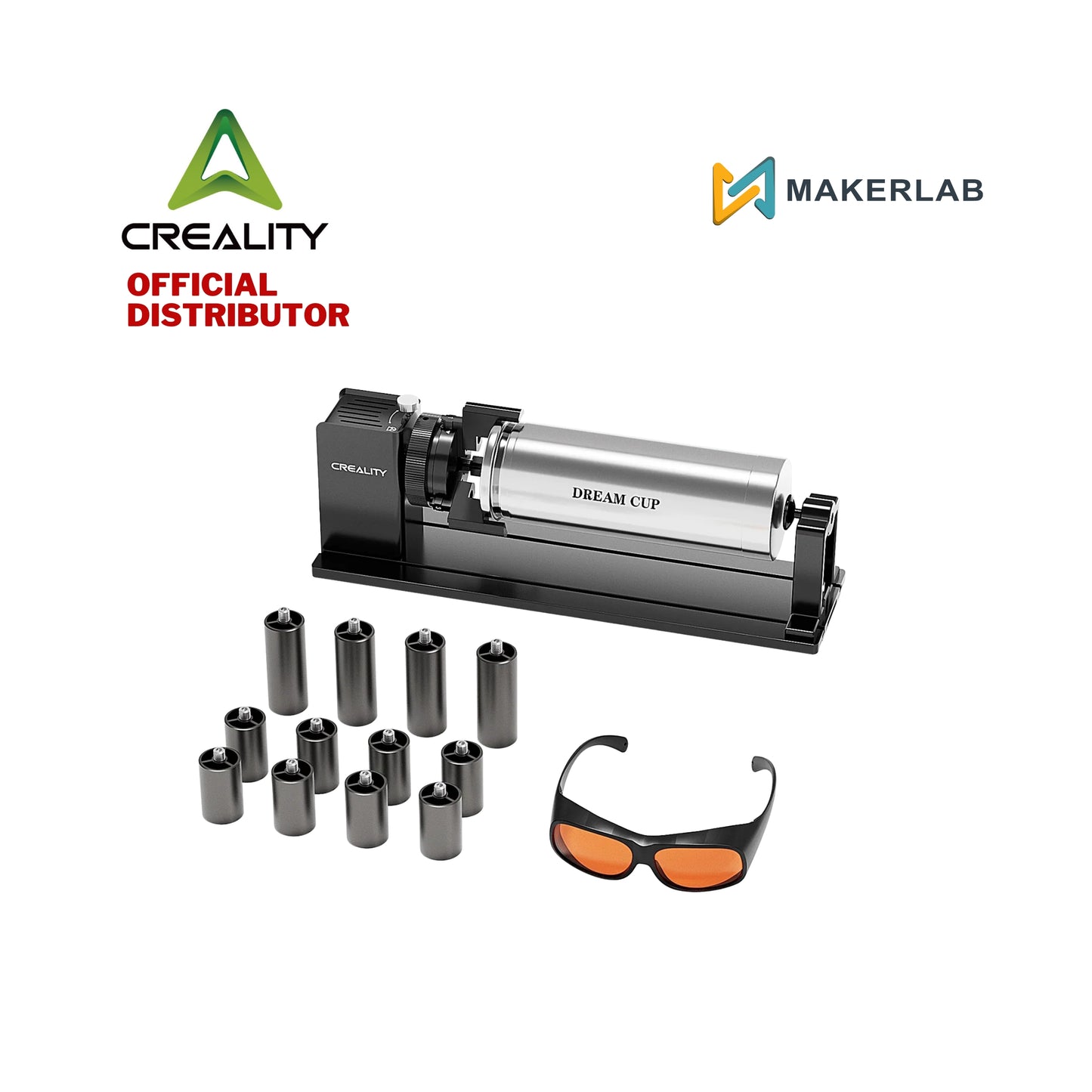

This upgrade package is specifically curated for the Falcon A1 series, including the necessary height risers (56mm and 28mm) to lift the machine's frame, and professional laser safety goggles. It supports "one-handed" clamping thanks to integrated set screws, making it easy to swap out workpieces like tumblers, wine glasses, or rings without a second operator.
Features

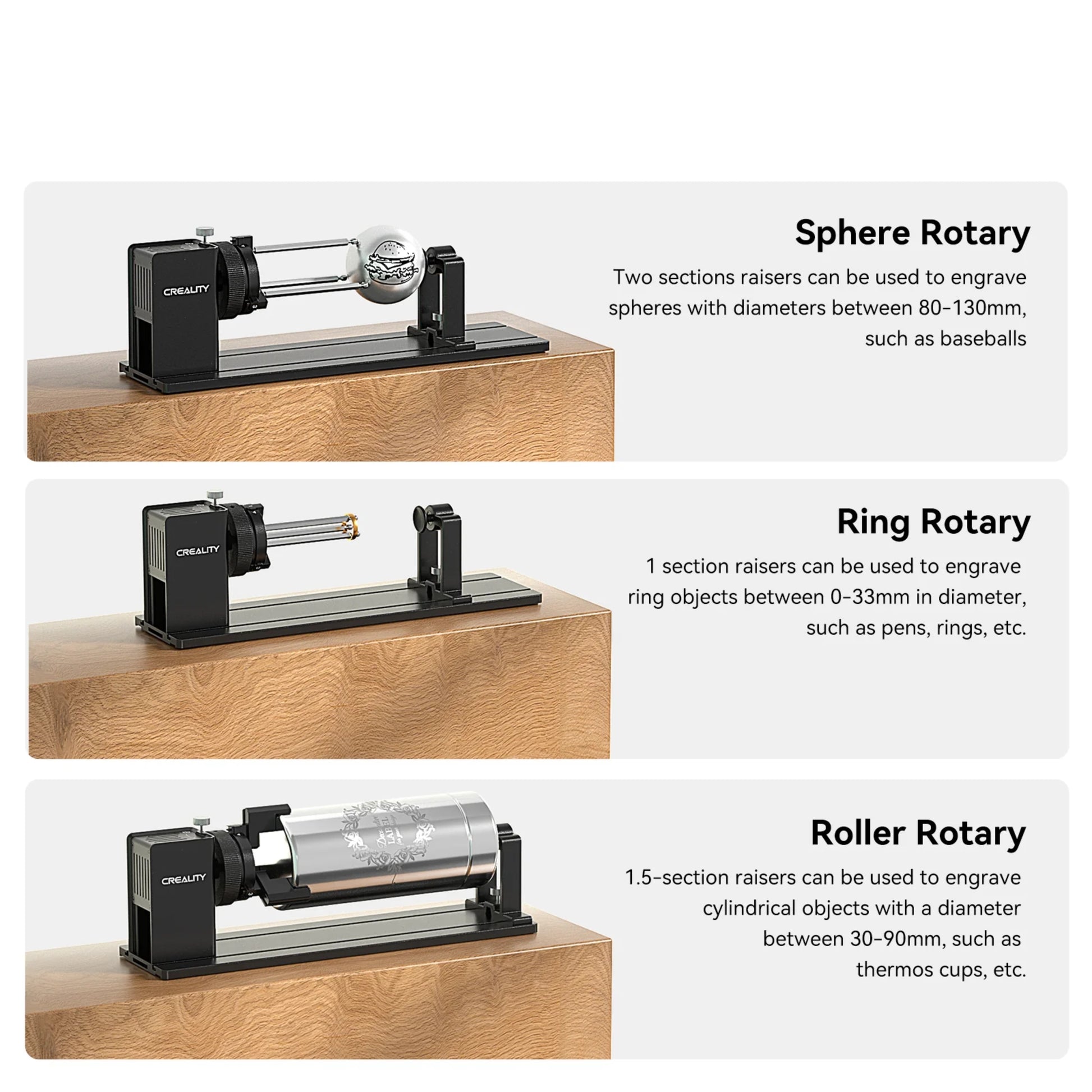

3-in-1 Versatility: Features a rotary chuck that can be configured for external clamping (cylinders), internal support (mugs), or hex-stud support (spheres and rings).

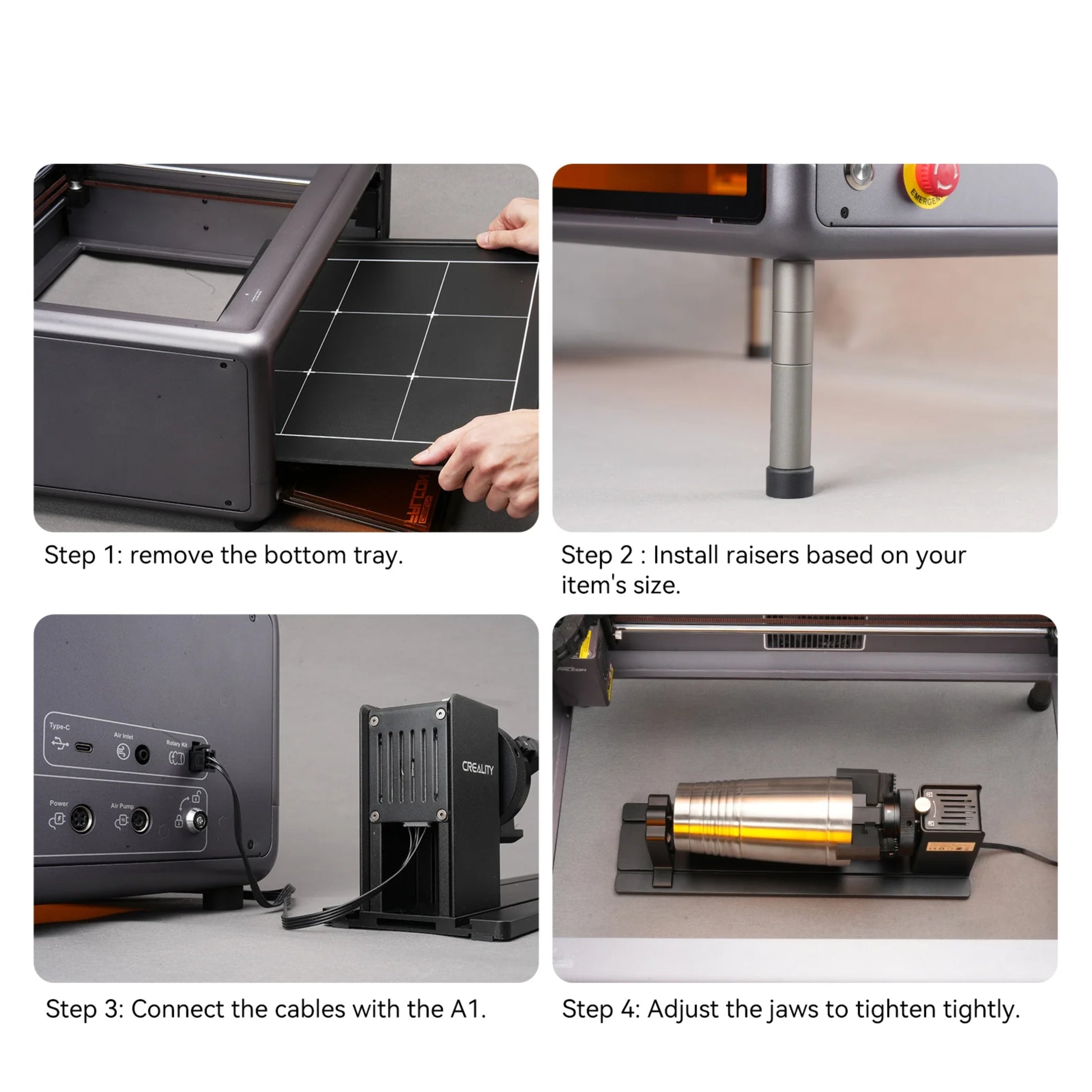

Pre-Assembled & Plug-and-Play: The module is fully built. You simply connect it to the Y-axis port (using the cable provided with your Falcon A1 machine).
Infinite 360° Rotation: High-precision stepper motor control provides 0.225° resolution for seamless, detailed engravings around the entire circumference of an object.
Anti-Slip Soft Pads: The jaws are equipped with protective padding to increase friction and prevent scratching fragile materials like glass or polished metal.

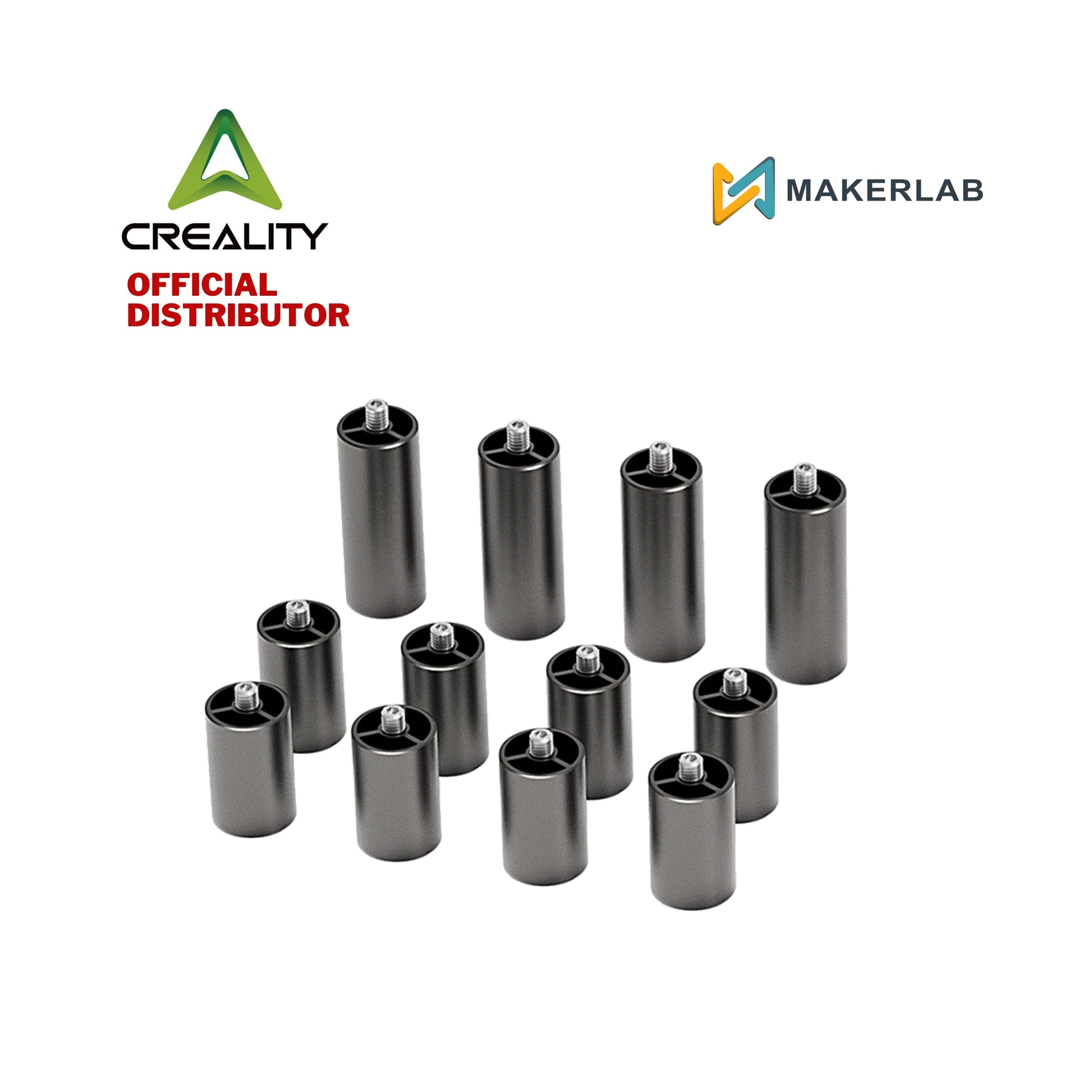

Variable Height Risers: The package includes 12 modular risers (4x56mm and 8x28mm) to provide ample clearance for large-diameter items like massive water bottles.
Wide Software Support: Fully compatible with industry-standard software including LightBurn and LaserGRBL.
Specifications
Model Number: 4007010222 (Falcon A1 Upgrade Pack)
Compatible Machines: Falcon A1
Material: All-Metal (Aluminum Alloy & Steel)
External Clamp Range: 1 – 110 mm (Cylinders)
Internal Prop Range: 25 – 75 mm (Mugs/Cups)
Hex Stud Range: 10 – 130 mm (Spheres), 15 – 100 mm (Rings)
Max Loading Capacity: 10 kg
Rotation Accuracy: 0.225°
