Description

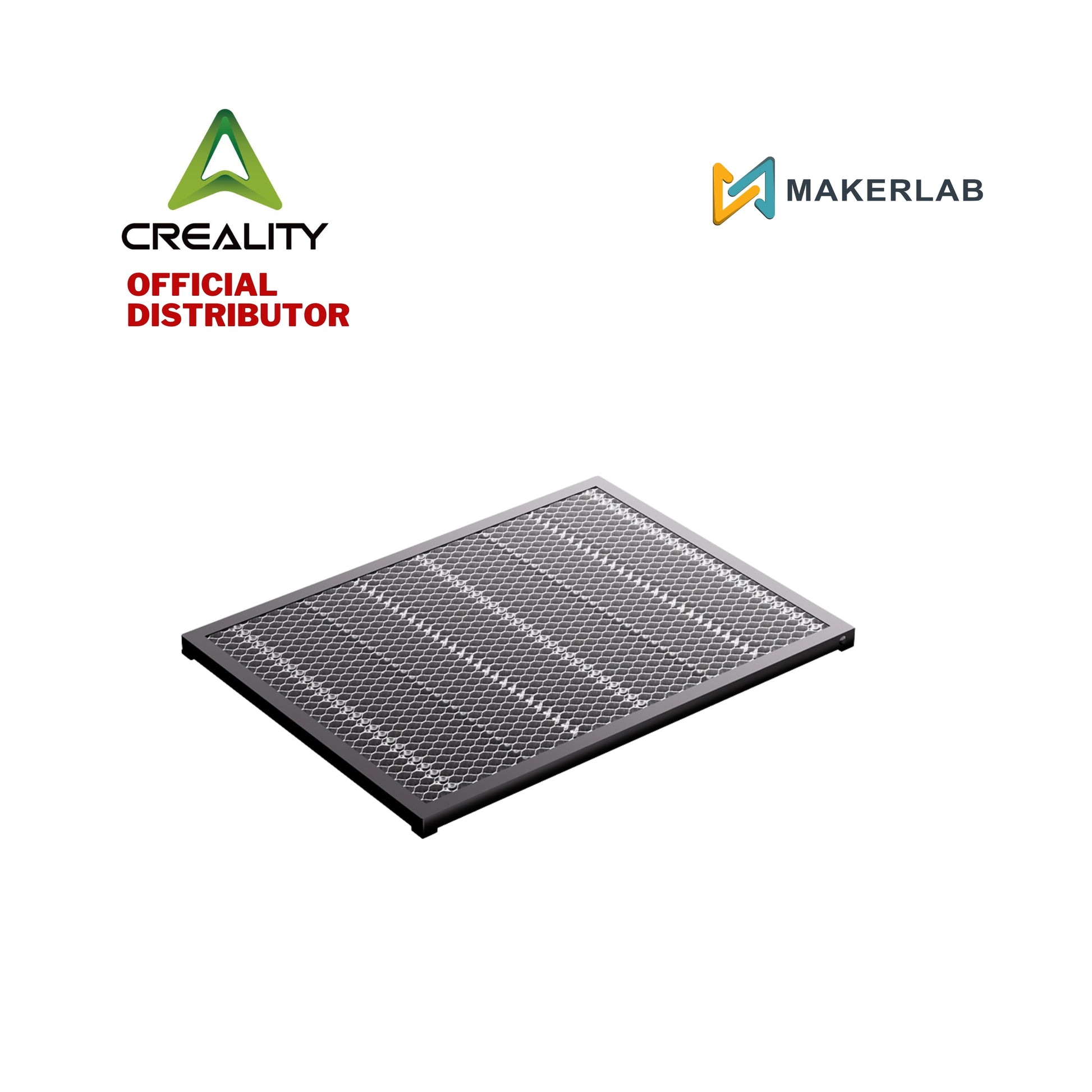

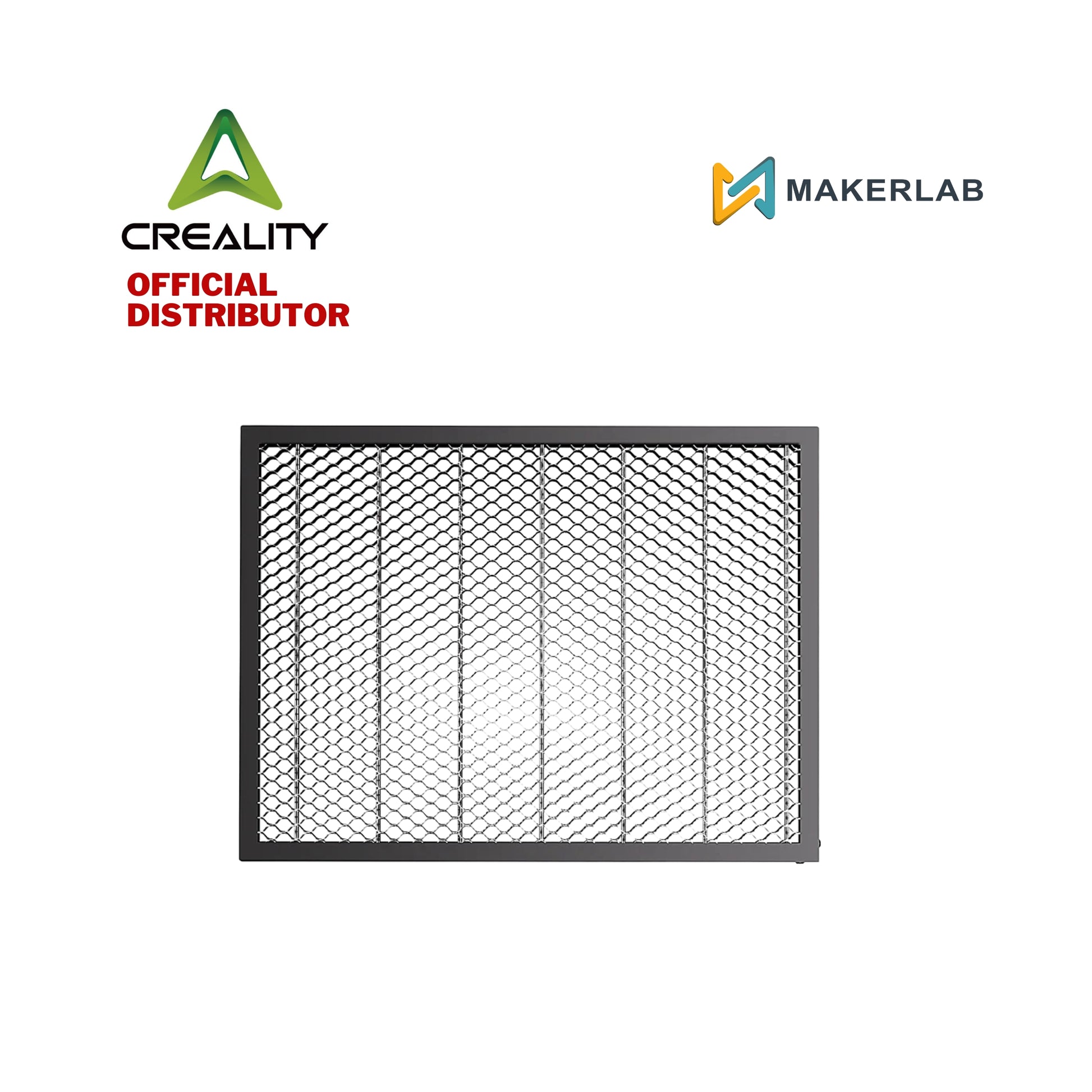

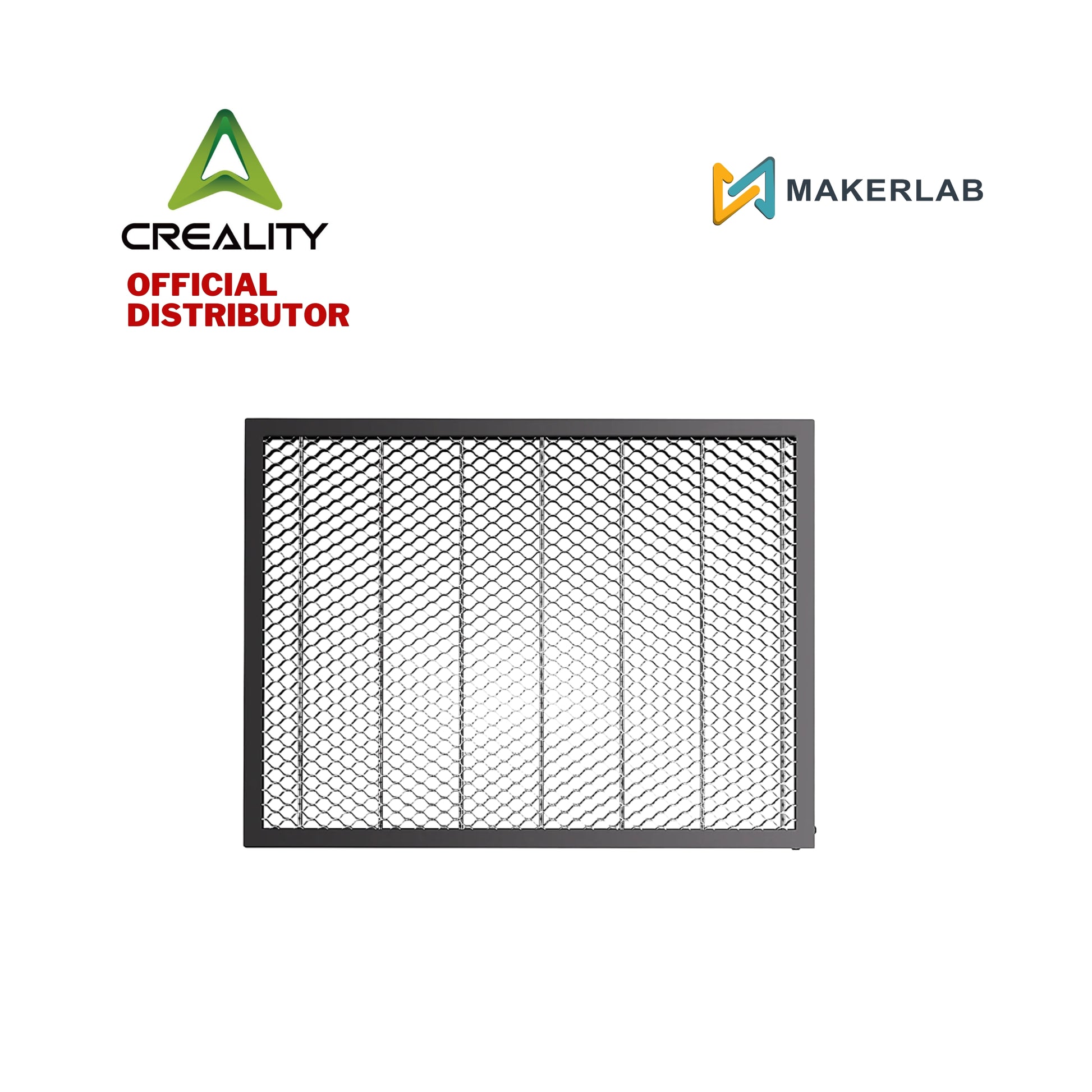

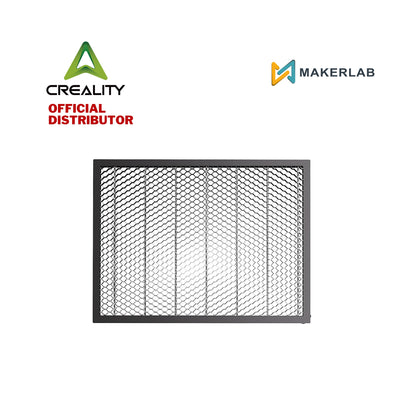

The 460*346mm Honeycomb Workbench is an essential "Partner for Clean Cutting." By lifting your workpiece off a flat surface and onto a specialized honeycomb grid, it allows air and laser energy to pass through the material.
This setup drastically reduces "back-flash" (where the laser reflects off a solid table and burns the back of your wood) and ensures that smoke is pulled away from the cut line immediately. The result is a significantly cleaner edge with minimal charring or yellowing. The kit also includes a solid aluminum base plate to ensure your actual desk or workbench remains completely safe from laser burn-through.
Features
Optimized Heat Dissipation: The 8mm large-aperture honeycomb design allows for rapid smoke exhaustion and cooling, preventing the material from overheating and catching fire.
Double Desktop Protection: Features a "Dual Defense" system—the honeycomb grid absorbs the primary laser energy, while an included aluminum backing plate catches any residual light to protect your table.
Cleaner Cutting Results: By providing an air gap beneath the material, it eliminates the "sooty" yellowing commonly seen on the underside of laser-cut plywood.
Stable All-Metal Build: Constructed from high-strength galvanized iron and aluminum alloy edging, ensuring the platform remains perfectly flat and resistant to warping under high heat.
Safety Corners: Includes four removable plastic corner covers to prevent accidental scratches from the sharp metal edges of the frame.
Integrated Measurement: Features millimeter-scale markings on the edges of the frame to help with quick material alignment and sizing.
Specifications
Model Number: 4007010223
Compatible Series: Creality Falcon A1 Series
Processing Area: 430×316 mm (16.9×12.4 inches)
Panel Dimensions: 460×346×15 mm
Honeycomb Aperture: 8 mm
Max Loading Capacity: 6 kg
Material: Galvanized Iron (Grid) + Aluminum Alloy (Frame)
Panel Weight: 0.93kg
Inclusions
1x Honeycomb Panel
4x Anti-Slip Foot Pads
